Design of Fractal Based Micro Strip Rectangular Patch Antenna for Multi band Applications
Objective
The main objective of this paper is to design an micro strip patch fractal antenna for various 5G applications
Abstract
In this work, we will design the fractal antenna is designed for Wireless Local Area Network (WLAN) applications. The antenna is fed using a microstrip line feed. The dimensions of the fractal antenna are 30´30´1.6mm3 which is compact sized design made on High Frequency Structure Simulator (HFSS) platform. The simulation outputs are internally compared with different iterations implemented on the patch using Iterated Function System (IFS) and the difference in the radiating frequency, return loss, bandwidth and gain of all three different iterations. The resonating frequency for three iterations ranges from 5.5GHz to 12GHz which can be used in WLAN applications.
Keywords: CAD FEKO, Co-axial , koch snowflake
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

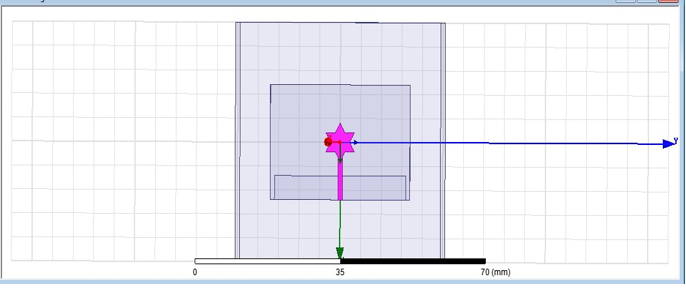

Block Diagram
Specifications
Software: HFSS Antenna designing.
Hardware:
- 64-bit Intel or AMD system, running Windows 10.
- 8 GB RAM
- A dedicated graphics card with latest drivers and at least 1GB video RAM, capable of supporting OpenGL 4.5 and DirectX 11, or higher. Use of integrated graphics (e.g., Intel HD/IRIS) is not recommended and is not support by the Analyze stage in Discovery. See below for special graphics requirements for ANSYS Discovery Live.
- 3 button Mouse.
Learning Outcomes
- Introduction to HFSS
- What is Antenna designing
- How to start with HFSS antenna designing.
- About Electromagnetic environmental setup
- Designing skills
- About libraries
- How to add feed, radiation patterns for Antenna.
- About HFSS desktop
- How to use different shapes in creation of Antenna
- Features of HFSS
- Basics on HFSS
- How to create EM fields in HFSS.
- How to generate directive gain, return loss graphs for different frequencies.
- How to extend our work to another real time applications
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
