Design of energy efficient VCO for PLL application

Also Available Domains Nano Technology|Transistor Logic

Project Code :TVMABE334

Objective

To design an energy-efficient voltage-controlled oscillator (VCO) optimized for phase-locked loop (PLL) applications. To achieve low phase noise, wide tuning range, and minimal power consumption while maintaining frequency stability and fast lock performance

Abstract

Phase-Locked Loops (PLLs) are essential in many communication systems (GPS, satellite, frequency synthesizer, clock data recovery). The Voltage-Controlled Oscillator (VCO) is a critical block in PLLs.

There is a need for VCOs to not only deliver sufficiently high frequency and wide tuning range but also to be energy/power efficient (i.e. low switching energy).

NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

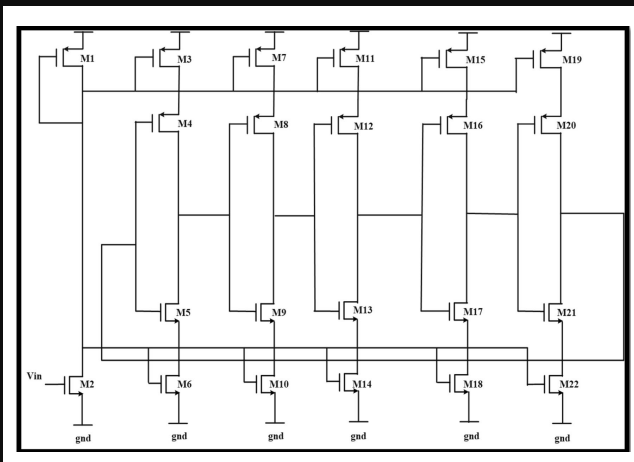

Block Diagram

Specifications

Software Requirements:

Tool: Cadence Virtuoso
Technology: GPDK 45nm&90nm

Hardware Requirements:

Microsoft® Windows XP
Intel® Pentium® 4 processor or Pentium 4 equivalent with SSE support
512 MB RAM
100 MB of available disk space

Learning Outcomes

Trade-off considerations in VCO/PLL design for low power / high performance

Recognize that improvements in one metric (e.g., frequency) may cost in another (e.g., area, stability, phase noise). While the paper focuses on frequency and switching energy, one must consider what is not improved or whether there are costs (e.g., complexity, noise).
Understand the role of process scaling (e.g. 45 nm CMOS) in enabling lower energy per switch, etc.
Use of simulation tools and design flow

Gain hands-on understanding of using cad tools (Cadence Virtuoso) for analog circuit design and simulation in nanoscale CMOS.
Learn what kinds of simulations are needed (e.g. transient, switching energy, frequency tuning) to validate VCO behavior under various control voltages / configurations. Implicit from design methodology
