Design of Dual Band Flexible Antenna for WLAN Applications & Comparing its Return Loss WIMW Shaped Antenna.
Objective
In this project we will design the T dual band, H dual band, W dual band, Rectangular, Circular and Hexagonal shapes by Using HFSS software. After completion of that design process, two bands are compared and plotted the return loss, radiation pattern, gain graphs.
Abstract
A novel and compact dual band planar antenna for 2.4/5.2/5.8-GHz wireless local area network (WLAN) applications is proposed and studied in this paper. In this project we will design the T dual band, H dual band, W dual band, Rectangular, Circular and Hexagonal shapes by Using HFSS software. The parametric study is performed in order to understand the characteristics of the proposed antenna. The return loss, radiation pattern, gain are studied too. The simulation return loss indicates the suitability of this antenna for the WLAN applications.
Keywords: Microstrip patch antenna , T slot, H slot, W slot , Rectangular , Hexagonal , circular slots.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

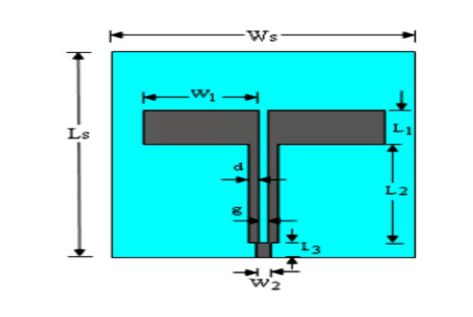

Block Diagram
Specifications
Software: HFSS Antenna designing.
Hardware:
- 64-bit Intel or AMD system, running Windows 10.
- 8 GB RAM
- A dedicated graphics card with latest drivers and at least 1GB video RAM, capable of supporting OpenGL 4.5 and DirectX 11, or higher. Use of integrated graphics (e.g., Intel HD/IRIS) is not recommended and is not support by the Analyze stage in Discovery. See below for special graphics requirements for ANSYS Discovery Live.
- 3 button Mouse.
Learning Outcomes
- Introduction to HFSS
- What is Antenna designing
- How to start with HFSS antenna designing.
- About Electromagnetic environmental setup
- Designing skills
- About libraries
- How to add feed, radiation patterns for Antenna.
- About HFSS desktop
- How to use different shapes in creation of Antenna
- Features of HFSS
- Basics on HFSS
- How to create EM fields in HFSS.
- How to generate directive gain, return loss graphs for different frequencies.
- How to extend our work to another real time applications
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
