DESIGN OF COMPARATOR USING MEMRISTORS

Project Code :TVMABE300

Objective

Reduce power consumption and area compared to traditional CMOS-based comparator designs

Abstract

The use of memristors for implementing fundamental logic gates like AND, NOT, and OR offers significant advantages due to their unique performance characteristics. These advantages include the ability to perform computations more efficiently, which leads to a reduction in the number of required gates, lower power dissipation, and overall improvements in performance compared to traditional computing methods. In this particular project, we built comparators using memristors, allowing them to accurately measure and evaluate the performance gains. The simulations, conducted with advanced tools like Cadence and Verilog-A, revealed substantial reductions in gate count, improved power dissipation, and better overall system performance.

Keywords: Memristor, Comparator

NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

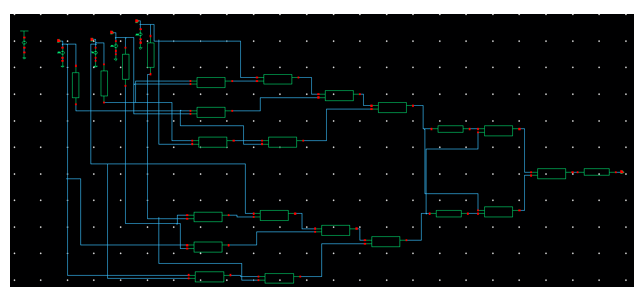

Block Diagram

Specifications

Software Requirements:

· Cadence virtuoso

· Technology-90 nm

Minimum Hardware Requirements:

· Microsoft Windows 7

· Intel i3 processor or equivalent

· 4GB RAM

· 100 MB of available disk space

Learning Outcomes

· Basics of Digital Electronics

· VLSI design Flow

· Knowledge of Flip-Flop Principles

· Understanding Timing Considerations

· Timing Analysis and Verification

· Drawbacks of existing methods

· Applications in real time

· Cadence Tool for design and simulation

· Solution providing for real time problems

· Project Development Skills:

o Problem Analysis Skills

o Problem Solving Skills

o Logical Skills

o Designing Skills

Demo Video

https://youtu.be/KUoJ8bq_hAw?si=SbcU3cnpsKOi6xAu
