Design of Area Efficient and Low Power 4-bit Multiplier Based on Full- Swing GDI Technique

Also Available Domains Low Power VLSI

Project Code :TVMABE09

Objective

This paper presents a design of 4-bit multiplier using full adder cell based on full swing gate diffusion input technique.

Abstract

This paper presents a design of 4-bit multiplier using full adder cell based on full swing gate diffusion input technique. The proposed adder design consists of 18 transistors and compared with different logic styles for full adders through cadence virtuoso simulation based on TSMC 65nm models at a supply voltage of 1v and frequency 250MHz. The simulation results showed that the proposed full adder design dissipates low power while improving the area and provides full swing output voltage among all the designs taken for comparison. The proposed full adder used to design Array, Barun and Baugh Wooley multipliers, Energy and Transistor count of these multipliers improved compared to CMOS.

NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

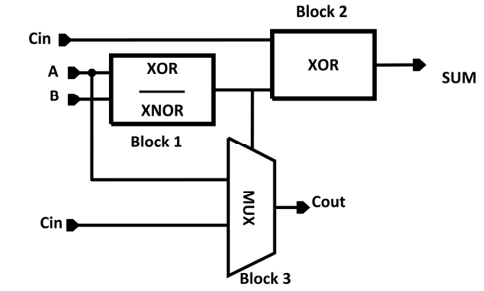

Block Diagram

Specifications

Software Requirements:

Ø Cadence Virtuoso

Ø Technology used: 45nm GPDK

Hardware Requirements:

· Microsoft® Windows XP

· Intel® Pentium® 4 processor or Pentium 4 equivalent with SSE support

· 512 MB RAM

· 100 MB of available disk space

Learning Outcomes

Introduction to GDI
Need of MOD GDI in Core memory applications
Transistors & its applications

o Types of Transistors

o Logic Gates using Transistors

o Pull Up and Pull Down networks

o Importance of Transistors

MOS Fundamentals
NMOS/PMOS/CMOS Technologies
How to design circuits using Transistor logic?
Transistor level design for Full Adders using GDI
How to design low power, high speed area efficient transistor level circuits?
Drawbacks in CMOS technology
Scope of Mod GDI in today’s world
Applications in real time
Cadence tool for design and simulation
Solution providing for real time problems

· Project Development Skills:

o Problem Analysis Skills

o Problem Solving Skills

o Logical Skills

o Designing Skills

o Testing Skills

o Debugging Skills

o Presentation skills

o Thesis Writing Skills
