Design of 6T, 8T & 10T ternary SRAM cells

Project Code :TVMABE218

Objective

This project proposes the design of a ternary inverter that uses low current as input voltage is VDD/2.

Abstract

This project proposes the design of a ternary inverter that uses low current as input voltage is VDD/2. When the supply voltage is set to 0.45 V, current supplied by a voltage source as an input voltage VDD/2 is reduced. By connecting ternary inverters back-to-back, a tritstorage element is implemented as a ternary SRAM cell. This paper also presents the first verification of read/write schemes that consider noise margins. The proposed designs are all evaluated by using the 10T & 8T SRAM cells and also proved that the 8T SRAM cell based ternary logic is evaluated better compare to the 10T SRAM cell.

NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

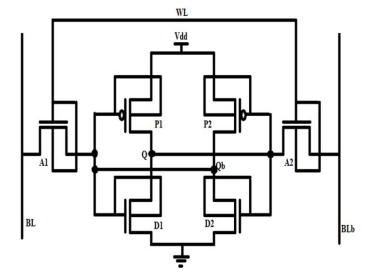

Block Diagram

Specifications

Software Requirements:

· Tool: Tanner EDA

· Technology: 45nm.

Learning Outcomes

Hardware Requirements:

· Microsoft® Windows XP

· Intel® Pentium® 4 processor or Pentium 4 equivalent with SSE support

· 512 MB RAM

· 100 MB of available disk space

Learning Outcomes:

· Introduction to Digital Electronics

· Knowledge on MOSFET operation and Characteristics

· Basics of SRAM

· Concept of Ternary Logic

o Ternary Inverters

o Ternary SRAM

· Advantages & Applications

· Tool learning in Tanner EDA

· Transistor level design of proposed block diagram

· Analysis of circuit and simulation results

· Scope of SRAM in today’s world
