Design of 2×2 Microstrip Patch Array Antenna for 5G C-band Access Point Applications
Objective
Design a 2×2 microstrip patch array antenna for 5G C-band access points with enhanced performance and simplicity.
Abstract

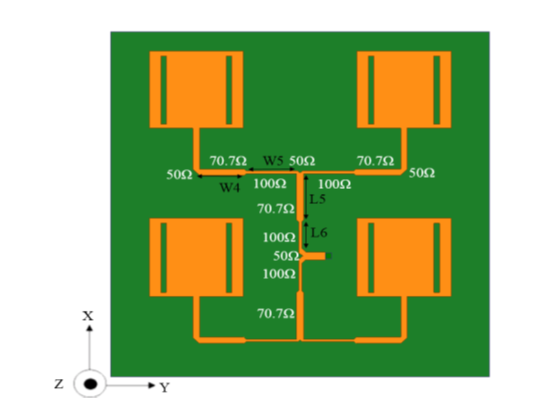

This presents a design of 2×2 microstrip patch array antenna for 5G C-band access point applications. The array uses the element of rectangular microstrip antenna with two vertical slots for 5G C-Band (3.4 – 3.6GHz) application. A microstrip feed network to feed the antenna array are also implemented in the design. The antenna array with low profile and simple structure is a good candidate of antenna for 5G C-band access point applications.
Keywords: Patch antenna, patch array antenna, 5G , C - band.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.
Block Diagram
Specifications
Software: HFSS Antenna designing.
Hardware:
- 64-bit Intel or AMD system, running Windows 10.
- 8 GB RAM
- A dedicated graphics card with latest drivers and at least 1GB video RAM, capable of supporting OpenGL 4.5 and DirectX 11, or higher. Use of integrated graphics (e.g., Intel HD/IRIS) is not recommended and is not support by the Analyze stage in Discovery. See below for special graphics requirements for ANSYS Discovery Live.
- 3 button Mouse.
Learning Outcomes
- Introduction to HFSS
- What is Antenna designing
- How to start with HFSS antenna designing.
- About Electromagnetic environmental setup
- Designing skills
- About libraries
- How to add feed, radiation patterns for Antenna.
- About HFSS desktop
- How to use different shapes in creation of Antenna
- Features of HFSS
- Basics on HFSS
- How to create EM fields in HFSS.
- How to generate directive gain, return loss graphs for different frequencies.
- How to extend our work to another real time applications
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
