Design Modeling and Control of a Bidirectional Wireless Power Transfer for Light-Duty Vehicles: G2V and V2G Systems
Objective
The main objective is to implement a control strategy for a bidirectional wireless power transfer system that enables efficient energy transfer in both G2V and V2G modes for light-duty electric vehicles, ensuring system reliability under varying operational conditions.
Abstract
This paper proposes a novel design methodology and control strategy for a bidirectional 3.7 kW wireless power transfer (WPT) system tailored for light-duty electric vehicle (EV) powertrains. The proposed system operates at two distinct switching frequencies: 85 kHz and 140 kHz. A Series/Series (SS) compensation topology is optimally designed and implemented in both grid-to-vehicle (G2V) and vehicle-to-grid (V2G) charging modes using MATLAB/Simulink. The control system is developed to enhance efficiency, charging power, and reduce charging time while supporting bidirectional energy flow. Simulation studies are carried out to evaluate the performance and functionality of the WPT system under different switching frequencies for both G2V and V2G operations. Furthermore, the impact of the WPT system on grid power quality is analyzed for each operating mode.
Keywords: - Electric Vehicle, Wireless Power Transfer, PI Controller, MATLAB Software.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

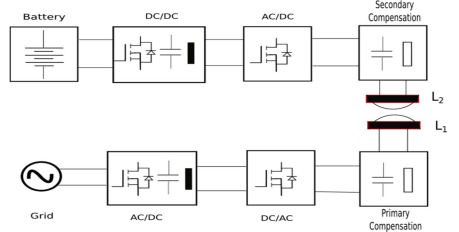

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software: Matlab / Simulink
Hardware Configuration:
RAM : 8 GB
Processor : I3 / I5 (Mostly prefer)
Learning Outcomes
· Introduction to Matlab/Simulink
· What is EISPACK & LINPACK
· How to start with MATLAB
· About Matlab language
· About tools & libraries
· Application of Matlab/Simulink
· About Matlab desktop
· Features of Matlab/Simulink
· Basics on Matlab/Simulink
· Introduction to bidirectional wireless power transfer
· Introduction to DAB
· Introduction to Pulse Width Modulation (PWM),
· Design of WPT
· Introduction to G2V
· Introduction to PI
· Introduction to Electrical Vehicle.
· Project Development Skills:
o Problem analyzing skills
o Problem solving skills
o Creativity and imaginary skills
o Programming skills
o Deployment
o Testing skills
o Debugging skills
o Project presentation skills
o Thesis writing skills
Demo Video
