Design and Verification of 4 X 4 Wallace Tree Multiplier
Objective
The aim of this paper is to study 4x4 Wallace tree multiplier. In high performance processing units & computing systems, multiplication of two binary numbers is primitive and most frequently used arithmetic operation.
Abstract
Abstract— This paper presents the design and verification of a 4 x 4 Wallace tree multiplier, which efficiently performs multiplication by employing a tree structure to reduce the number of partial products and carry propagation delays. The Wallace tree architecture utilizes a combination of full adders and half adders to quickly sum the partial products, resulting in improved speed and performance compared to traditional multiplication methods. Comprehensive simulations and verification processes are conducted to ensure the accuracy and reliability of the design. The proposed multiplier demonstrates significant advantages in terms of area, speed, and power efficiency, making it well-suited for applications in high-performance computing and digital signal processing.
Keywords— Wallace Multiplier, RTL
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

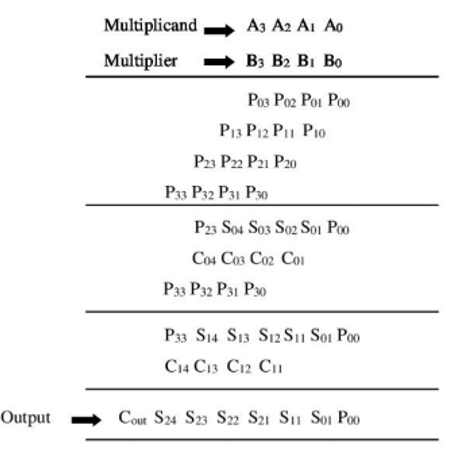

Block Diagram
Specifications
Software Requirements:
VIVADO 2018.3
Hardware Requirements:
· Microsoft® Windows XP
· Intel® Pentium® 4 processor or Pentium 4 equivalent with SSE support
· 512 MB RAM
· 100 MB of available disk space
Learning Outcomes
- Basics of Digital Electronics
- VLSI design Flow
- Applications in real time
· VIVADO for design and simulation
· Solution providing for real time problems
· Project Development Skills:
o Problem Analysis Skills
o Problem Solving Skills
o Logical Skills
o Designing Skills
o Testing Skills
o Debugging Skills
o Presentation Skills
o Thesis Writing Skills
