Design and Implementation of Improved Three Port Converter and B4-Inverter Fed Brushless Direct Current Motor Drive System for Industrial Applications
Objective
The main objective of this project is aims to provide efficient and reliable power conversion and BLDC motor control for various industrial applications.
Abstract
This project aims to design and implement an improved three-port converter and a B4-inverter fed brushless direct current motor drive system for industrial applications. The three-port converter will provide bidirectional power flow between the grids, energy storage, and load, while the B4-inverter fed brushless direct current motor drive system will enable precise and efficient motor control. The improved three-port converter will be designed to provide high power density, low losses, and high efficiency. Advanced control algorithms will ensure stable operation and optimal performance. The B4-inverter fed brushless direct current motor drive system will incorporate advanced control techniques such as field-oriented control (FOC) and predictive control to provide high accuracy and dynamic response. Fault detection and protection mechanisms will ensure safe and reliable operation.
The system's overall goal is to develop a high-performance power conversion and motor control system suitable for demanding industrial applications such as robotics, automation, and electric vehicles by using Matlab/Simulink software 2018a
Keywords: BLDC, Simulation, Battery Domains, B4-inverter, Energy Storage Systems, Three Port Converter, PV systems, Microcontroller, Maximum Power Point Tracking
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

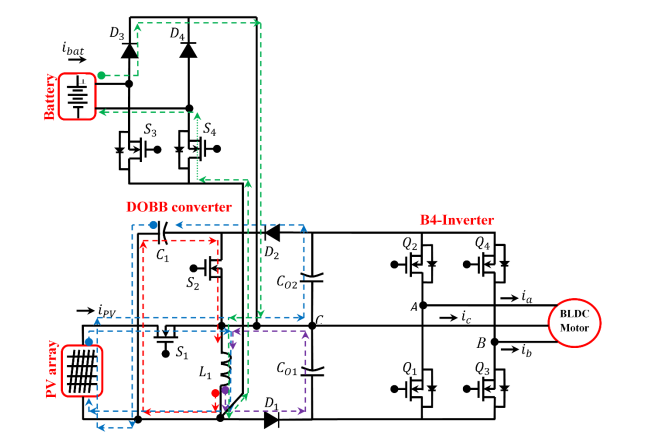

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software: Matlab / Simulink
Hardware Configuration:
RAM : 8 GB
Processor : I3 / I5 (Mostly prefer)
Learning Outcomes
· Introduction to Matlab/Simulink
· What is EISPACK & LINPACK
· How to start with MATLAB
· About Matlab language
· About tools & libraries
· Application of Matlab/Simulink
· About Matlab desktop
· Features of Matlab/Simulink
· Basics on Matlab/Simulink
· We can learn about B4-Inverter Fed brushless dc motor
· We can learn about Electric Vehicle
· Project Development Skills:
o Problem analyzing skills
o Problem solving skills
o Creativity and imaginary skills
o Programming skills
o Deployment
o Testing skills
o Debugging skills
o Project presentation skills
o Thesis writing skills
Demo Video
