Design and Implementation Bidirectional DC–AC Converter for Energy Storage System
Objective
The main objective of this project is to propose a bidirectional single-phase dc–ac converter with triple port converter (T-PC) for energy storage systems.
Abstract
Abstract: In this project, a bidirectional single-phase dc–ac converter with triple port converter (T-PC) for application of energy storage. This proposed converter provides three ports such as ac port, dc port, and dc bus port to achieve three power interfacing ports. For the direct conversion process, dc port is directly connected to T-PC, and direct power will be exchanged between energy storage device (ESD) and grid when the ESD voltage peak amplitude is lower than the ac voltage. Thus, a dc–dc converter downstream power process gets reduced, and power loss is decreased considerably. Due to multilevel characteristics, switching losses in the T-PC can be reduced. The efficiency of the overall bidirectional dc–ac conversion process can be increased significantly. The circuit model, working principle, and modulation control of T-PC-based bidirectional dc–ac conversion concepts are analyzed. The simulation results can be evaluated by using MATLAB/Simulink Software.
Keywords: DC–AC bidirectional converter, partial dual-stage power conversion, triple port converter (T-PC).
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

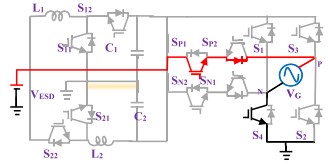

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software: Matlab / Simulink
Hardware Configuration:
RAM : 8 GB
Processor : I3 / I5 (Mostly prefer)
Learning Outcomes
· Introduction to Matlab/Simulink
· What is EISPACK & LINPACK
· How to start with MATLAB
· About Matlab language
· About tools & libraries
· Application of Matlab/Simulink
· About Matlab desktop
· Features of Matlab/Simulink
· Basics on Matlab/Simulink.
· Introduction to Pulse Width Modulation (PWM),
· Introduction to bidirectional converter
· Introduction to battery
· Project Development Skills:
o Problem analyzing skills
o Problem solving skills
o Creativity and imaginary skills
o Programming skills
o Deployment
o Testing skills
o Debugging skills
o Project presentation skills
o Thesis writing skills
