Design and Analysis of a 2.4 GHz Fully Integrated 1.8V Power Amplifier in TSMC l80nm CMOS RF Process for Wireless Communication
Objective
In this paper, cascode topology with inductively degenerated common-source CMOS power amplifier is suggested with improved gain, isolation, better stability and sufficient linearity over the operating range
Abstract
We present a fully integrated single-stage 1.8V power amplifier operating .Our design employs a cascode topology combined with an inductively degenerated common-source CMOS power amplifier to enhance gain, isolation, stability, and linearity across the operational spectrum.
While noise figure typically holds less relevance in power amplifier (PA) design, we optimize the matching network to minimize noise figure (NF) and maximize power gain. The proposed circuit has been successfully designed and implemented using Cadence Virtuoso tools at 45nm, 90nm & 180nm technology.
Keywords—An inductively degenerated PA, Cascode Topology, S- parameter analysis.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

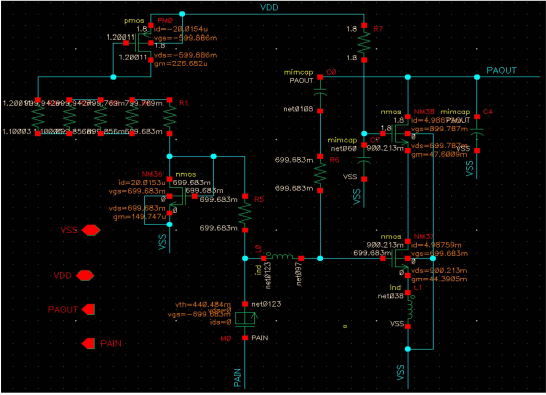

Block Diagram
Specifications
Software Requirements:
· Tool: Cadence virtuoso
· Technology files: GPDK 45nm, 90nm & 180nm
Hardware Requirements:
· Microsoft® Windows XP
· Intel® Pentium® 4 processor or Pentium 4 equivalent with SSE support
· 512 MB RAM
· 100 MB of available disk space
Learning Outcomes
- Introduction to Digital electronics
- Importance of Transistors
- MOS Fundamentals
- NMOS/PMOS/CMOS Technologies
- How to design circuits using Transistor logic?
- Scope of amplifiers in today’s world
- Use of feedback signals.
- Applications in Real time.
- Amplifiers importance.
- Solution providing for real time problems
- Project Development Skills:
- Problem Analysis Skills
- Problem Solving Skills
- Logical Skills
- Designing Skills
- Testing Skills
- Debugging Skills
- Presentation skills
- Thesis Writing Skills
Paper Publishing
