D-STATCOM for Power Quality Improvement in Distribution Power System using MATLAB Simulink
Objective
Main objective of this project is to improve the Power Quality in Distribution Power System
Abstract
In this project, In today's scenario Power Quality issues are turned into a serious matter for both electric power utilities and the power system engineers. Dynamic loads are one of the major causes of power quality debasement in power transmission lines.
Due to their high nonlinearity and time varying behavior, various power quality issues like voltage variation, harmonic distortion arises in the system. Simulation of the system will be carried out using MATLAB/SIMULINK software to obtain the result.
When there is an overload in the system, high current will flow through the line and the consequence voltage sag will occur. In order to improve voltage sag, D-STATCOM will connect to the system. In this paper, the performance of D-STATCOM both before and after saging will be analyzed.
Keywords: Power Quality, Facts, D-Statcom Harmonics, Reactive Power
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

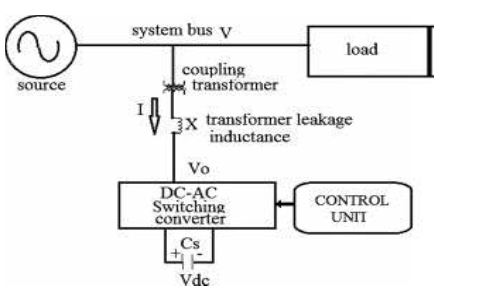

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to Matlab/Simulink software
- Introduction to power electronics converters
- Introduction to FACTS devices.
- Design of DSTATCOM.
- Introduction to phase locked loop (PLL)
- Design of PLL
- Design of Voltage source converter
- Design of Shunt Compensator
- We can learn about the generation of gate pulses to the converter.
- We can learn about Power electronic Switch.
- We can learn about Generation of Phase Angle.
- Introduction to controllers.
- Design of PI controller.
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
