Coordinated Control Of Mppt And Voltage Regulation Using Single-stage High Gain Dc–dc Converter In A Grid-connected Pv System

Coordinated control of MPPT and voltage regulation using single-stage high gain DC–DC converter in a grid-connected PV system

Abstract:

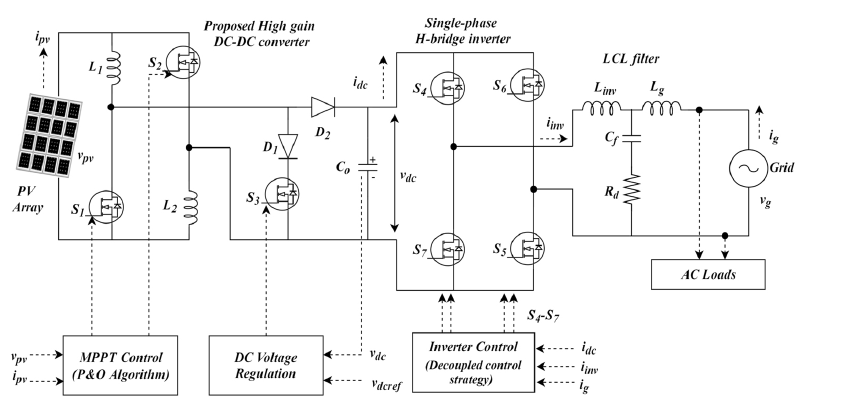

In general, grid-connected PV system uses two stages of DC-DC converter to accomplish Maximum Power Point Tracking (MPPT) and DC voltage regulation. In order to overcome the two stage conversion, a single stage high gain DC-DC converter is presented in this paper. The operation of three switches with two different duty ratios is the main advantage of this converter to accomplish the coordinated control of MPPT and DC voltage regulation. This coordinated control also helps to provide constant DC voltage to the DC loads though the inverter is disconnected from the DC bus. A 1KW grid-connected PV system with the proposed DC-DC converter is developed and is validated using OP4500 Real-Time test platform. In addition, a decoupled control strategy with fractional order proportional-integral (FOPI) controller is implemented at the inverter end. Also, the reactive power compensation, harmonic reduction (less than 5% as per the IEEE 519 standard) and the grid power factor close to unity is obtained and the results are validated using the real-time simulator.
