Control of Solar battery storage based micro grid
Abstract
This paper presents the control of a solar and battery storage based micro grid in grid connected mode. PV array equipped with maximum power point tracking (MPPT) control. The micro grid is interconnected with battery storage along with charge controller to maintain uncertain generation from solar generators.
The grid-side inverter is operated in P-Q control mode. The model has been formulated in MATLAB-Simulink environment. The model has been investigated for two cases (i) constant load variable, irradiation and (ii) variable load, variable irradiation. The results evidently establish the efficiency of control technique in maintaining voltage, frequency power balance at PCC.
Keywords: solar energy, battery storage system, maximum power point control, micro grid, PQ control.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

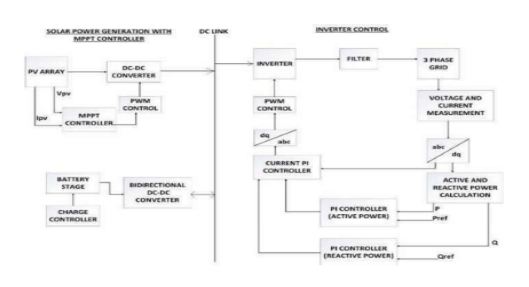

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to controllers.
- Study of PWM techniques.
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
