Control and Implementation of a Multifunctional Solar PV-BES-DEGS Based Microgrid
Objective
Main objective of this project is to extract the maximum power from the PV array and improve the power quality, such as compensation of harmonics, reactive power, and load unbalance.
Abstract
In this project, a Three-Phase Four-Wire (TPFW) microgrid comprising of a solar Photo Voltaic (PV) array- Battery Energy Storage (BES) - a Diesel Engine Generator Set (DEGS) is presented. Here, an Enhanced Adaptive Filter (EAF) control and an Incremental Conductance (INC) Maximum Power Point Tracking (MPPT) algorithm are used to improve the power quality and to extract the maximum power from the PV array.
The EAF control provides higher disturbance rejection capability over other controls. The EAF control is applied to the Voltage Source Converter (VSC) to improve the power quality, such as compensation of harmonics, reactive power, and load unbalance.
The INC control is used to harvest the PV array maximum power. For controlling the voltage output of the DEGS, an electronic Automatic Voltage Regulator (AVR) is provided at the Synchronous Generator (SG) field winding. The neutral current compensation is achieved by controlling the fourth-leg of VSC.
Keywords: Photo Voltaic, Battery Energy Storage, Enhanced Adaptive Filter, Incremental Conductance MPPT, Automatic Voltage Regulator.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

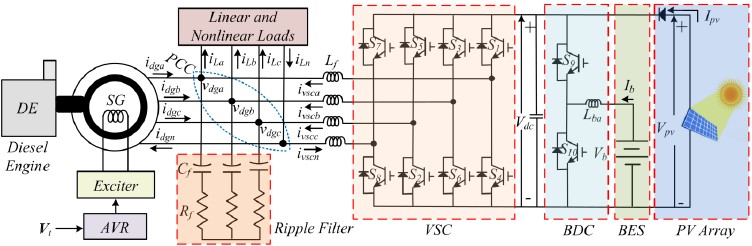

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB / 4 GB (Min)
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to Power Grids
- Introduction to Renewable Energy Sources
- Introduction to Solar Power System
- Introduction to MPPT.
- Introduction to Diesel generator (DG)
- Introduction to enhanced adaptive filter (EAF)
- Introduction to incremental conductance (INC) maximum power point tracking (MPPT) algorithm
- Introduction to Automatic voltage regulator (AVR)
- Introduction to Types of Batteries.
- Introduction to Battery energy Storage (BES).
- Introduction to Point of Common Coupling (PCC)
- Introduction to Pulse Width Modulation (PWM),
- Design of Solar Panel.
- How to implement boost converter control?
- We can learn about the Micro-Grids
- Introduction to open loop and closed loop control system
- Introduction to bidirectional converter
- Introduction to RC Filters
- Introduction to Voltage Source Converters (VSC)
- We can learn about PI Controllers
- We can learn about different types of loads.
- We can learn about Mathematical model of Solar panel
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
