Codes for Limited Magnitude Error Correction in Multilevel Cell Memories

Also Available Domains Communications and Crypto Core|Xilinx Vivado

Project Code :TVPGTO406

Objective

This paper implements an efficient scheme that corrects up to symmetric magnitude-3 errors in multilevel cell (MLC) memories. In this design, two approaches are used to design low redundancy SEC-DAEC codes

Abstract

In this project, an efficient scheme is presented to correct limited magnitude errors on multilevel cell memories. The proposed scheme combines the use of a low redundancy SECDAEC code in the two lowest bits of the cell with IP bits to correct up to magnitude-3 symmetric errors. The SEC-DAEC code is used to locate the cell in error and correct errors on some bits.

The IP is used to identify the error pattern on the remaining bits. The proposed IP-DAEC scheme provides a simple implementation that achieves a low delay with a reduced number of parity bits.

The proposed scheme has been compared to existing schemes that have similar capability showing an advantage of memory redundancy, as well as a lower encoder/decoder overhead in most cases. The synthesis and simulation results are carried out using Xilinx ISE 14.7

Keywords: Error Correction Codes, Multilevel cell memories, limited magnitude errors, SEC-DAEC codes

NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

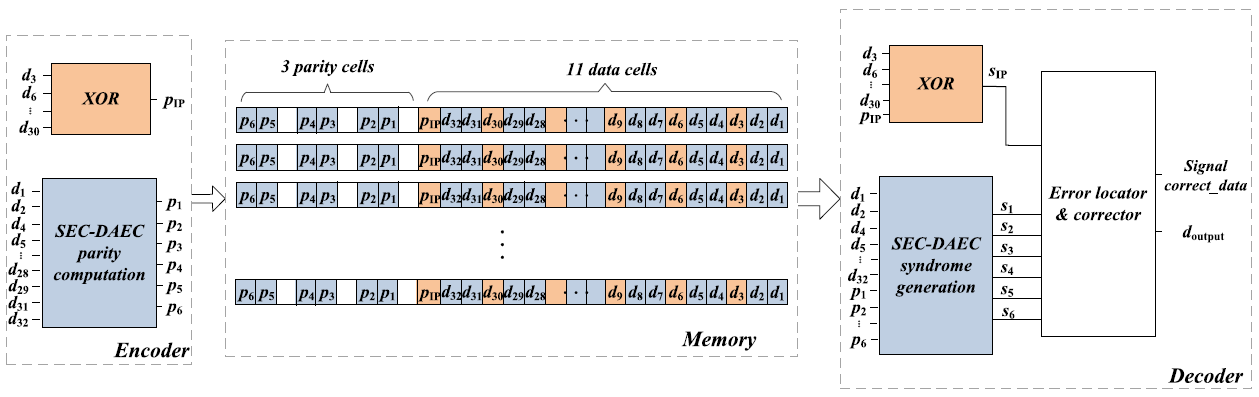

Block Diagram

Specifications

Software Requirements:

Xilinx ISE 14.7
HDL: Verilog

Hardware Requirements:

Microsoft® Windows XP
Intel® Pentium® 4 processor or Pentium 4 equivalent with SSE support
512 MB RAM
100 MB of available disk space

Learning Outcomes

Basics of Digital Electronics
FPGA design Flow
Introduction to Verilog Coding
Different modeling styles in Verilog

Data Flow modeling
Structural modeling
Behavioral modeling
Mixed level modeling

Introduction to Memories & Error correction codes
Concept of Multilevel cell memories
Knowledge on how to correct magnitude-3 errors in multilevel cell memories
Knowledge on Interleaved Parity (IP) bits and Single Error Correction
Knowledge on Double Adjacent Error Correction (SEC-DAEC) codes
How high performance is achieved in Residue number system
How to achieve high speed, Low power and area efficiency?
Applications in real time
Xilinx ISE 14.7 for design and simulation
Generation of Netlist
Solution providing for real time problems
Project Development Skills:

Problem Analysis Skills
Problem Solving Skills
Logical Skills
Designing Skills
Testing Skills
Debugging Skills
Presentation Skills
Thesis Writing Skills
