Cascaded Multilevel PV Inverter With Improved Harmonic Performance During Power Imbalance Between Power Cells
Objective
The main objective of the project is to mitigate voltage and current distortions by injecting power with lower voltage from the shaded cells without altering the PV voltage.
Abstract
In this project, a multilevel topology for photovoltaic (PV) applications is proposed, where an H6 bridge power cell is used instead of an H-bridge one. In case of solar irradiance mismatch among the power cells, the proposed converter injects power with lower voltage from the shaded cells without altering the PV voltage; hence maintaining the MPPT operation.
This modification allows us to retain an equal duty cycle in all the power cells whatever the meteorological conditions are present; consequently, maintaining good output voltage and current waveform qualities.
Keywords: Cascaded converter, grid connected, H-bridge, maximum power point tracking (MPPT), modular multilevel converter (MMC), partial shading, perturb and observe, photovoltaic (PV), power quality
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

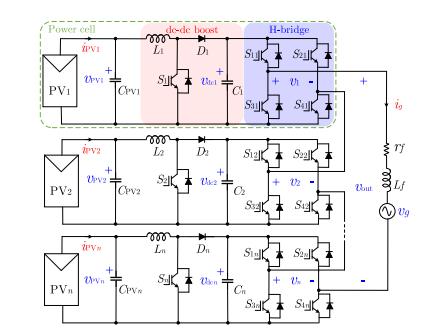

Block Diagram
