Automatic Electronic Toll Collection System using RFID
Objective
The main objective of this project is to reduce traffic in toll gates. In this project we have implemented a RFID based Vehicle identification with toll collection system and automatic gate open in tolls.
Abstract
In this project we have implemented a RFID based Vehicle identification with toll collection system and automatic gate open in tolls. This project uses RFID Technology. This uses a Reader and a tag. This system reduces the need for motorists and toll authorities to manually perform ticket payments and checking vehicle details. Thus it is more efficient system by reducing traffic and human errors. This system makes the vehicle drivers to pass the toll booth without stopping and waiting up to their turn. The amount will be deducted from the RFID card which is rechargeable and the details of the car will be stored to data base.
In this for every vehicle we will attach a RFID tag. If any of the vehicle comes near to a toll gate the reader will read the tag and provides the information regarding that vehicle and cuts the toll amount in the card and opens the door.
Keywords: Arduino uno, IR sensor, LCD, GSM, Buzzer, Motor driver, DC motor, power supply
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

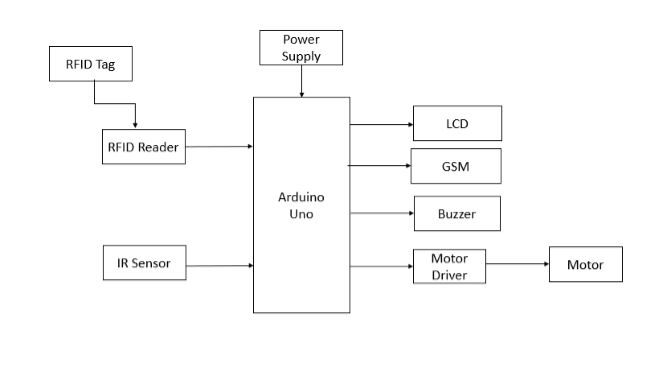

Block Diagram
Specifications
Hardware Requirements:
- Arduino Uno
- IR sensor
- RFID module
- GSM
- Motor driver and DC motor
- LCD
- Buzzer
- power supply Board
- 12V Adapter
Software Requirements:
- Arduino IDE
- Fritzing
Learning Outcomes
- Arduino pin diagram and architecture
- How to install Arduino IDE software
- Setting up and installation procedure for Arduino
- Introduction to Arduino IDE
- Basic coding in Arduino IDE
- Working of IR sensor
- Interface IR sensor with Arduino?
- Working of RFID module
- Interface RFID module with Arduino?
- Working of Motor driver and DC motor
- Interface Motor driver and DC motor with Arduino?
- Working of GSM
- Interface GSM with Arduino?
- Working of Buzzer
- Interface Buzzer with Arduino?
- Working of power supply
- About Project Development Life Cycle:
- Planning and Requirement Gathering( software’s, Tools, Hardware components, etc.,)
- Schematic preparation
- Code development and debugging
- Hardware development and debugging
- Development of the Project and Output testing
- Practical exposure to:
- Hardware and software tools.
- Solution providing for real time problems.
- Working with team/ individual.
- Work on Creative ideas.
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
