Arduino Employed Power Theft Controller and IoTbased Load Controlling for Smart Energy Meter System
Objective
The main objective of this project is to measure currents at load using Energy meter and if it increases threshold current then we say that power theft occured
Abstract
This project deals with proper monitoring and controlling of energy consumption as well as detecting the power theft if anyone is trying to theft the electricity. Nowadays, lots of energy gets wasted due to thefts and consumer has to wait for the person to come from utility to provide them with the energy meter bill. An Internet of Things (IoT) and Arduino-based smart energy meter is suggested as a solution to these issues. The Arduino uno used in this project is controlling the power theft if anyone tries to theft electricity. With the implementation of IoT, which is required Node MCU i.e., not only controlling the loads which are connected to a relay but also providing the details of energy consumption to IoT interface so that information can be used by the consumer.
Keywords: Current sensor, IOT, GSM
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

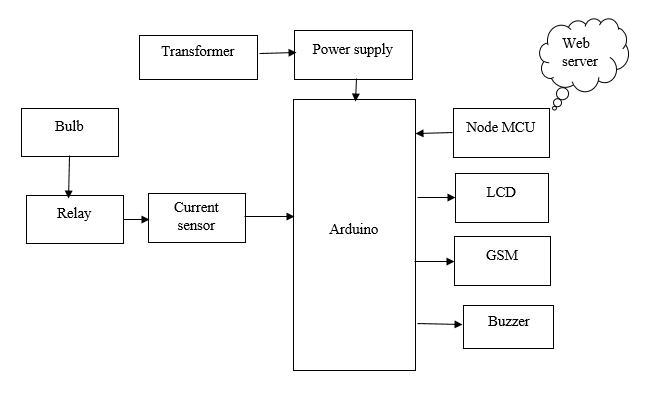

Block Diagram
Specifications
Hardware Requirements:
- Arduino uno
- Node MCU
- LCD
- Current sensor
- Buzzer
- Gsm
- Power supply
- Transformer
Software Requirements:
- Arduino IDE
- Embedded C
Learning Outcomes
- Arduino pin diagram and architecture
- How to install Arduino IDE software
- Setting up and installation procedure for Arduino
- Introduction to Arduino IDE
- Basic coding in Arduino IDE
- Working of current sensor motor driver
- Interface current sensor with Arduino
- Working of buzzer
- Interfacing buzzer module with Arduino
- Working of power supply
- About Project Development Life Cycle:
- Planning and Requirement Gathering (software’s, Tools, Hardware components, etc.,)
- Schematic preparation
- Code development and debugging
- Hardware development and debugging
- Development of the Project and Output testing
- Practical exposure to:
- Hardware and software tools.
- Solution providing for real time problems.
- Working with team/ individual.
- Work on Creative ideas.
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
