Analysis of PV Panel based Bidirectional Converter for Electric Vehicle
Objective
The main objective of this project is to extract the maximum power from solar PV to charge an Electric Vehicle.
Abstract
This paper present an analysis of PV panel based Bidirectional converter for Electric vehicle charging. This system consists of solar cell battery, bidirectional dc -dc converter. A Battery is provided for supply power to dc motor during no sunlight condition. The bidirectional dc–dc converter is working in both charging and discharging the battery and can manage the flow of power in both the direction and hence excess energy from the PV panel can be stored in battery. Under the influence of varying irradiance and varying load conditions, the MPPT controller extracts full power from the PV module. Evaluation and analysis of model output was carried out via Matlab/Simulink.
Keywords: PV panel, Bidirectional Converter, battery, Maximum Power Point Tracking (MPPT).
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

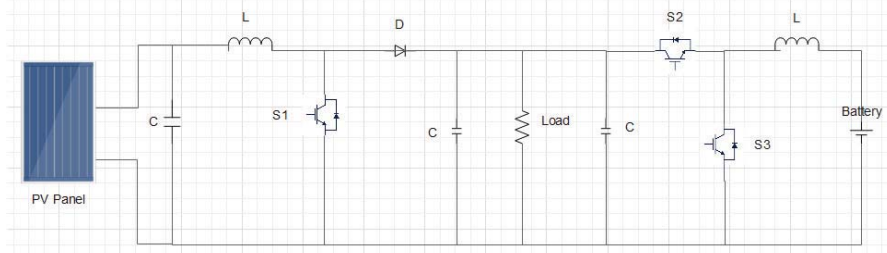

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to controllers.
- Study of PWM techniques.
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
