Analysis of Leakage Power Reduction Techniques for Low Power VLSI Design

Also Available Domains Transistor Logic|Tanner EDA

Project Code :TVPGTO73

Objective

The main aim of this project is to implement the multiplier design with different leakage power reduction techniques. Lector, Dual VT, MTCMOS techniques are used to implement the multiplier circuit.

Abstract

Power dissipation has become one of the major concerns VLSI circuit design with the rapid launching of battery operated applications. In high performance designs, the leakage component of power consumption is comparable to the switching component. This percentage will increase with technology scaling unless effective techniques are introduced to bring leakage under control. In this paper, an 8X8 multiplier is designed using different leakage power reduction techniques like MTCMOS, DUAL-Vt and LECTOR. All the above mentioned techniques are simulated using cadence EDA tool.

NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

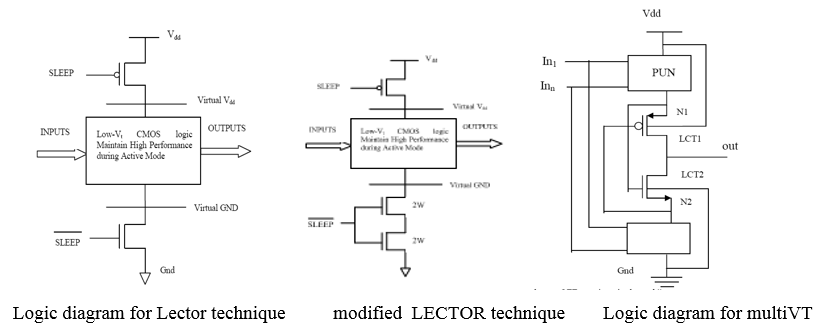

Block Diagram

Specifications

Software Requirements:

Cadence EDA
Technology files:180nm

Hardware Requirements:

Microsoft® Windows XP
Intel® Pentium® 4 processor or Pentium 4 equivalent with SSE support
512 MB RAM
100 MB of available disk space

Learning Outcomes

Introduction to Multipliers

Different types of power consumption

Transistor scaling & Effects of scaling

Role of static power in lower technology nodes.

Transistors & its applications

Types of Transistors
Logic Gates using Transistors
Pull Up and Pull Down networks
Importance of Transistors

MOS Fundamentals

NMOS/PMOS/CMOS Technologies

How to design circuits using Transistor logic?

Transistor level design for Multipliers

How to design low power, high speed area efficient transistor level circuits?

Drawbacks in CMOS technology

Scope of Low leakage circuit design in todays world.

Applications in real time

Cadence EDA tool for design and simulation

Solution providing for real time problems

Project Development Skills:

Problem Analysis Skills
Problem Solving Skills
Logical Skills
Designing Skills
Testing Skills
Debugging Skills
Presentation skills
Thesis Writing Skills
