Analysis And Control Of Modular Multilevel Converter With Split Energy Storage For Railway Traction Power Conditioner

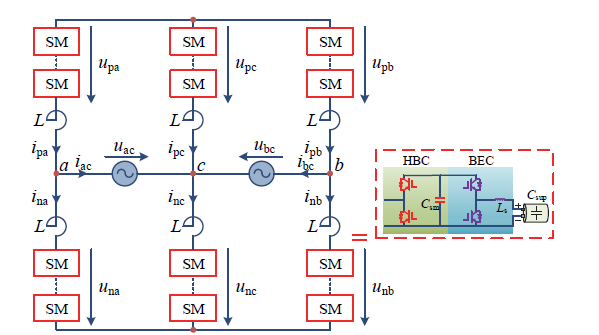

The project is designed with a Railway power conditioner (RPC) with split super capacitor energy storage system(SCESS) that is based on Modular Multilevel Converter. For this situation, the MMC-SCESS based RPC couldn't just give ordinary negative sequence currents (NSC) compensation yet additionally could lessen the effect of intensity of power deviations brought about by the train braking or startup on the electric grid. Initially, this paper examines the power stream designs and finds the reference circling current under various activity methods of MMC-SCESS based RPC. At that point, the control destinations of MMC-SCESS based RPC are partitioned into two classifications including the balance control and the current tracking control. The balance control techniques are produced for the submodules (SMs) capacitor voltages and the state of charge (SoC) of the super capacitor, which are related with the activity modes. To guarantee the present following presentation, a model predictive direct current control (MPDCC) technique is introduced for MMC and bidirectional energy converter (BEC). At long last, the viability of the proposed control strategies is checked by the trial aftereffects of a downscaled model.
