An Ultra-Low-Power Static Contention-Free 25-Transistor True Single-Phase-Clocked Flip-Flop in 55 nm CMOS
Also Available Domains Cadence EDA|Low Power VLSI
Objective
this ultra-low-power static contention-free flip-flop design addresses the need for energy-efficient flip-flop implementations in modern CMOS technologies, offering improved performance metrics
Abstract
Abstract
Optimizing the power consumption of flip-flops (FFs), as essential components of sequential digital circuits, can significantly reduce the overall energy usage of digital systems. This paper introduces an ultra-low-power true single-phase clocked (TSPC) flip-flop with a 25-transistor design (29 transistors with a reset function). By eliminating redundant charging and discharging and addressing floating nodes through transistor-level optimization, the design achieves a fully static, contention-free operation. Implemented in CMOS technology, demonstrate that the proposed circuit offers exceptionally low energy consumption, making it ideal for energy-efficient applications.
Keywords: low power, flip-flop.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

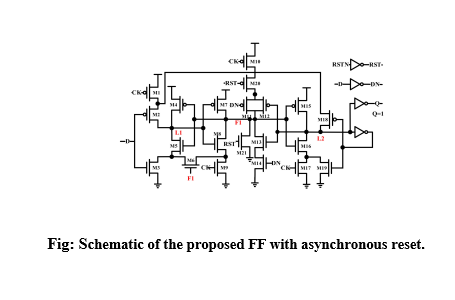

Block Diagram
Specifications
Specifications:
Software Requirements:
• Cadence virtuoso
• Technology-90 nm
Minimum Hardware Requirements:
o Microsoft Windows 7
o Intel i3 processor or equivalent
o 4GB RAM
o 100 MB of available disk space
Learning Outcomes
• Basics of Digital Electronics
• VLSI design Flow
• Knowledge of Flip-Flop Principles
• Understanding Timing Considerations
• Timing Analysis and Verification
• Drawbacks of existing methods
• Applications in real time
• Cadence Tool for design and simulation
• Solution providing for real time problems
• Project Development Skills:
o Problem Analysis Skills
o Problem Solving Skills
o Logical Skills
o Designing Skills
