An Integrated Power Decoupling Method for Single-Phase EV Onboard Charger in V2G Application

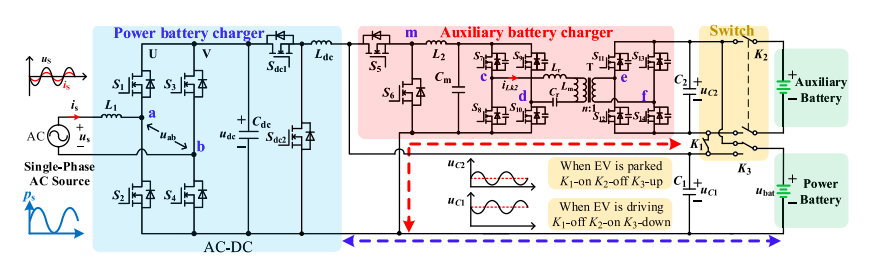

Abstract: This this paper proposes an Instead of bulky passive filters, the active power decoupling (APD) method can be adopted to suppress the second order ripple power in the dc bus of the single-phase electric vehicle onboard charging system. However, the traditional APD methods require additional power switches and energy storage devices, which increase the cost and significantly reduce the power conversion efficiency. To tackle these problems, an integrated method of utilizing the auxiliary power module to form a series-connected APD circuit is proposed in this article. Without additional switches and energy storage devices, the APD circuit only needs to compensate less than 10% of the rated power, while realizing soft-switching operation. In addition, the corresponding control method can further reduce the voltage stress of the switches on the high-voltage side of the converter, and increase the efficiency of the system. utilizing the MATLAB/Simulink platform.

Keywords: —Active power decoupling (APD), auxiliary power modules, second-order current ripple suppression, single-phase onboard charging system, soft-switching.
