An Improved SEPIC- Based Single Switch Buck-Boost PFC Converter Fed Brushless DC Motor Drive
Objective
The main objective of the project is to obtain high efficiency operation of BLDC motor by reducing source current THD.
Abstract
In this project, an improved SEPIC-based single switch Buck-Boost PFC converter fed brushless DC motor drive is proposed. This converter works by one switch and voltage stress across the switch is also low. In this converter, a non-inverting output voltage is obtained. It operates at wide output voltage range by changing the duty cycle of the power switch.
As only one power switch is used, the presented converter can be easily controlled. It has very low source current total harmonic distortion and achieves unity power factor which results in high efficiency operation of BLDC motor. The voltage source inverter feeding the BLDC motor operates at line frequency so that the switching losses are very low.
Keywords: SEPIC Converter, Buck-Boost Converter, Total Harmonic Distortion, Unity Power Factor, BLDC Motor Drive.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

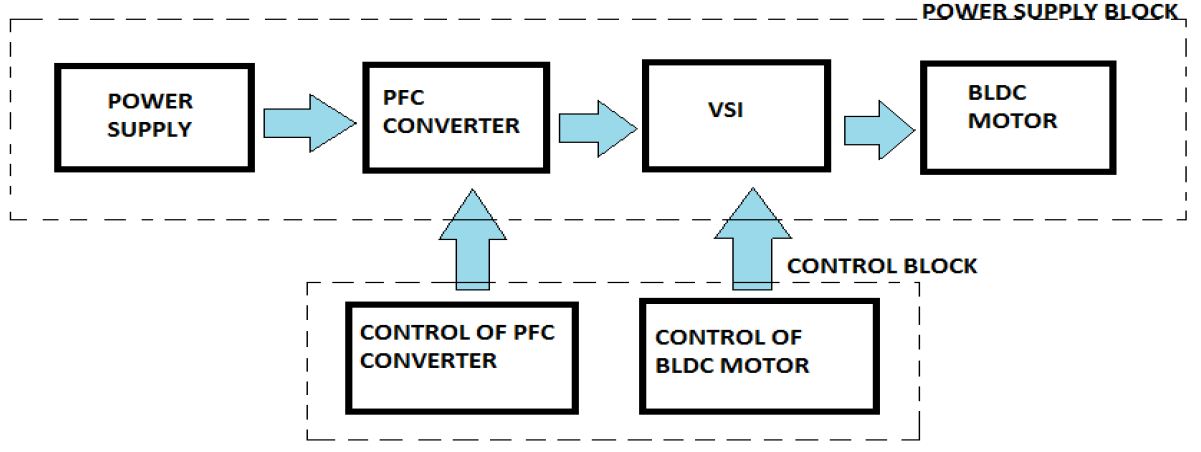

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB / 4 GB (Min)
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction power electronics
- Introduction to DC-DC Converter
- Introduction to buck boost converters
- Introduction to boost converters
- Introduction to single-switch buck-boost converter
- Introduction to phase locked loop (PLL)
- Introduction to PWM techniques
- Introduction to transformers
- Design of PLL
- Introduction to controllers
- Introduction to IGBTs
- Introduction to Controllers
- Introduction to Proportional Integral controller
- Design of SEPIC-based single switch Buck-Boost PFC converter
- Introduction to various Power factor correction techniques
- Introduction to BLDC motor
- Design of BLDC motor
- Introduction to Parks transformation
- Design of parks transformation
- Introduction to Clarks transformation
- Design of Clarks transformation
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
