An Improved Llc Resonant Converter With Reconfigurable Hybrid Voltage Multiplier And Pwm Plus- Pfm Hybrid Control For Wide Output Range Applications
Abstract
An Improved LLC Resonant Converter with Re-configurable Hybrid Voltage Multiplier and PWM plus- PFM Hybrid Control for Wide Output Range Applications.
Abstract:
This paper proposes an improved LLC resonant converter with reconfigurable hybrid voltage multiplier (RHVM) for wide output voltage range applications. By adopting three legs and two active switches, the rectifier can be reconfigured to three configurations, i.e. full-bridge rectifier (FBR), hybrid voltage-multiplier rectifier (HVMR) and voltage-multiplier rectifier (VMR), covering the range of more than three times of the minimum output voltage. Compared with conventional LLC converter, the operating range of each configuration is narrowed so that the magnetizing inductance is optimized and switching frequency range is narrowed to achieve higher efficiency. Pulse width plus pulse frequency modulation strategy is employed to achieve smooth transition between these operation modes. Zero voltage switching of all power MOSFETs and zero-current switching of all secondary-side diodes are achieved as well.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

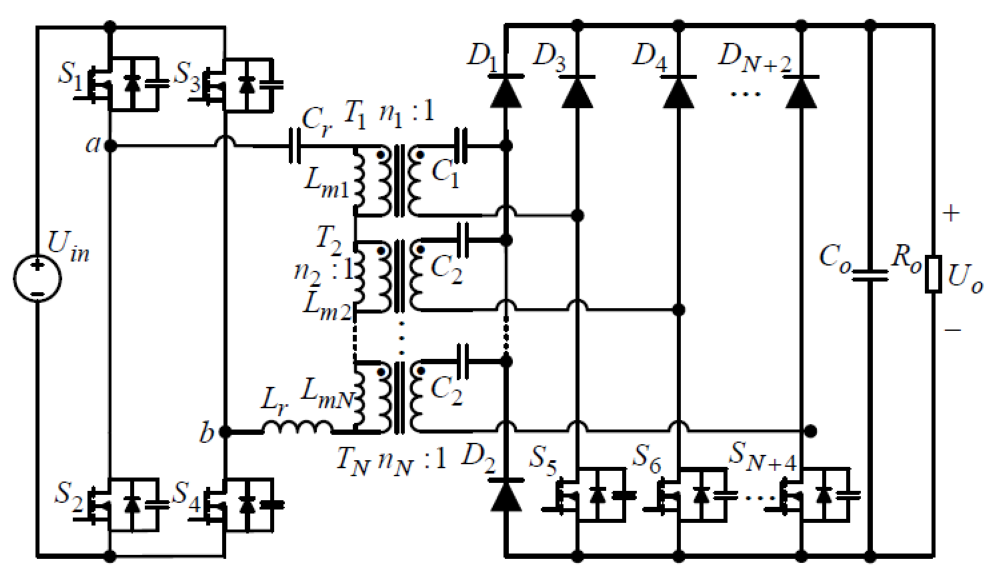

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB / 4 GB (Min)
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to controllers.
- Study of PWM techniques.
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
