AFLL-Based Control Technique for Grid Interfaced Three-Phase PV System
Objective
Main objective of this project is to decrease harmonics components and reduce the dc offset and also the dc-link voltage controls the solar PV generation. It decreases the oscillations in the grid currents during any interruption in the grid.
Abstract
In this project, Advanced Frequency Locked Loop (AFLL)-based control algorithm for a three phase double stage grid interfaced Solar Photovoltaic (PV) system. This AFLL-based algorithm extracts fundamental component of the load current and eliminates harmonics, performs grid currents balancing, improves the system performance during distorted grid conditions, and isolates the system during the occurrence of a grid fault.
In a long radial network, the far away ends have the problem of voltage quality but this controller maintains the grid power quality by providing required reactive and active powers to the grid.
The Voltage Source Converter (VSC) of the PV system supplies the PV energy to the grid even under the worst situations of dc offset, solar insolation variation, load unbalancing, grid faults, voltage distortion, voltage unbalance, and voltage swell/sag. The VSC switching losses are reduced using an adaptive dc link voltage. This system is modeled and simulated in MATLAB.
Keywords: Advanced Frequency Locked Loop (AFLL), Maximum Power Point Tracking (MPPT), Power Quality (PQ), photovoltaic (PV), Voltage Source Converter (VSC).
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

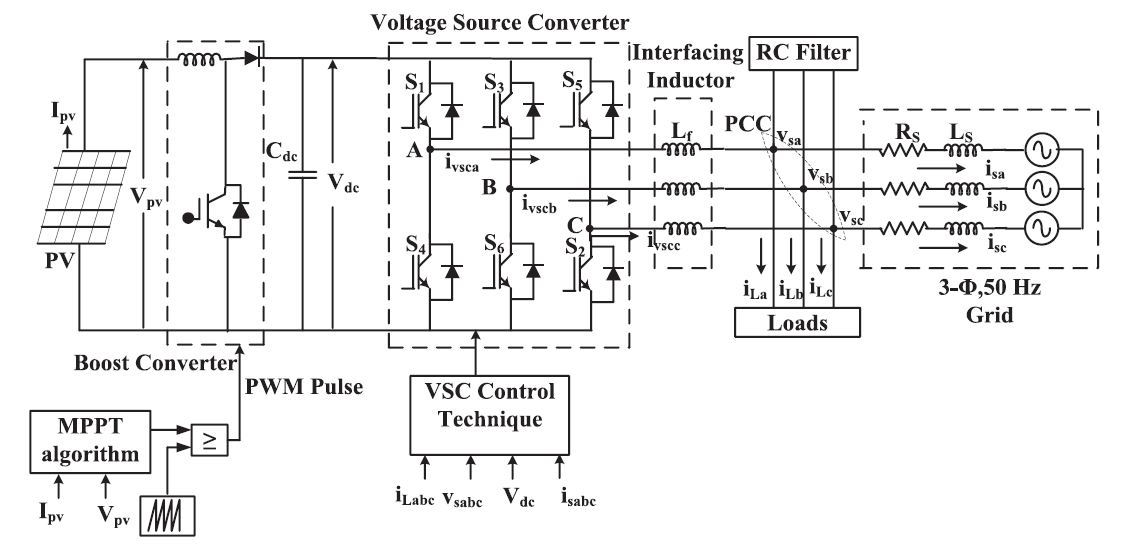

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB / 4 GB (Min)
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to solar power generation
- Introduction to Matlab/Simulink software
- Introduction to power electronics converters
- Introduction to phase locked loop (PLL)
- Introduction to PWM techniques
- Introduction to Band Pass Filters
- Design of PLL
- Design of P&O MPPT
- Design of solar PV system
- Design of MPPT controller
- Design of DC – DC boost converter
- Design of Voltage source converter
- Design of Clarks transformation
- Design of parks transformation
- We can learn about the generation of gate pulses to the converter
- We can learn about the generation of boost converter
- We can learn about VSC Control Technique
- We can learn about MPPT Algorithm
- We can learn about RC filter
- We can learn about Low pass Filter
- Introduction to controllers
- Design of PI controller
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
