Advanced Foot Step Power Generation System Using RFID for Charging
Objective
The main objective of this project is to generate power through pressure from foot steps
Abstract
Day by day, the population of the country is increasing and the requirement of the power is also increasing. At the same time the wastage of energy is also increasing in many ways. So, reforming this energy back to usable form is the major solution. In this footstep power generation project, we are generating power with the help of human’s footsteps; this power is then used to charge battery. The power is stored in a battery that can be used to charge a mobile phone using RFID card. This system is powered by Arduino, it consists of Arduino IDE, RFID sensor, and LCD.
The energy from pizeo is stored in battery. RFID reader is used to charge the mobile when the card is swiped against the reader.
Keywords: Foot-step power generation, RFID, Arduino.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

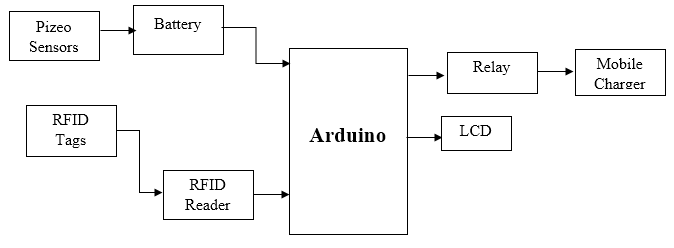

Block Diagram
Specifications
Hardware Requirements:
- Arduino
- RFID Reader & Tags
- Pizeo Sensors
- Battery
- Relay
- LCD
- LED’s
Software Requirements:
- Arduino IDE
- Embedded C
- Fritzing/Proteus
Learning Outcomes
- Arduino (ATMega328p) pin diagram and architecture
- How to install Arduino IDE software
- Setting up and installation procedure for Arduino IDE
- Introduction to Arduino IDE
- Commands in Embedded C
- Basic coding in Embedded c
- Working of RFID Reader
- How to interface RFID with Arduino?
- Working of Pizeo Sensor
- How to interface Pizeo Sensor to Arduino and Battery?
- Working of LCD
- How to interface LCD with Arduino?
- Working on Power supply
- Working of Relay
- How to interface Relay with Arduino?
- About Project Development Life Cycle:
- Planning and Requirement Gathering (Hardware components, etc.,)
- Hardware development and debugging
- Development of the Project and Output testing
- Practical exposure to:
- Hardware tools.
- Solution providing for real time problems.
- Working with team/ individual.
- Work on Creative ideas.
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Testing skills
- presentation skills
- Thesis writing skills
