Adaptive Nonlinear Control of Unified Model of Fuel Cell, Battery, Ultracapacitor and Induction Motor Based Hybrid Electric Vehicles

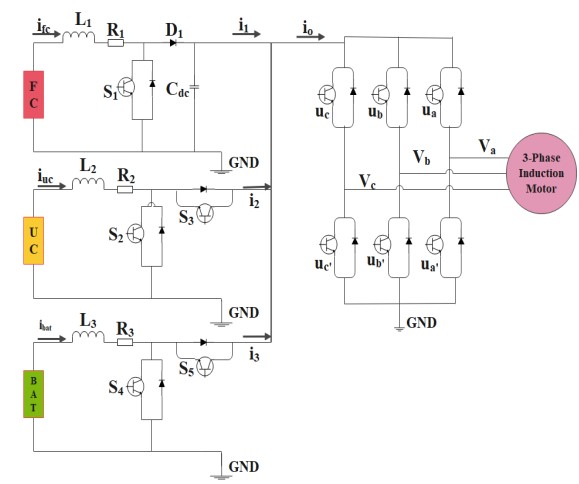

This paper presents a unified mathematical model of FHEV is based on fuel cell as a primary source, ultracapacitor and battery as storage units as well as the induction motor dynamics. The variations in parameters like resistance, capacitance, inductance and the nonlinearities of the dynamical system have also been considered. Three adaptation based nonlinear controllers namely adaptive terminal sliding mode, adaptive terminal synergetic and adaptive synergetic controllers have been proposed for the regulation of DC bus voltage along with speed tracking when subjected to European extra urban driving cycle. Lyapunov stability theory has been used to ensure global asymptotic stability of the system. Proposed controllers have been simulated on MATLAB/Simulink. Furthermore, ATSMC has further been implemented.

 Keywords: Hybrid electric vehicles, adaptive terminal sliding mode control (ATSMC), adaptive terminal synergetic control (ATSC), adaptive synergetic control (ASC), hardware in the loop.
