Accident prevention system
Objective
The main objective of this project is to reducing the risk of driving vehicle in the terrain region with hairpin bends and steep curves.
Abstract
The model explains how we can avoid collision between vehicles at curved roads. Daily we can see lots of accident at curved roads. This is due to negligence in driving or visibility problem on the road. In curved roads the people ride their vehicles as usual as on straight road without reducing the speed and when suddenly another vehicle come in front of them they get confused and cannot control their vehicle and accident happens.
So to avoid this type of accident we have developed a warning system which will give visual indication to the drivers. As you can see curved road in the model, it is having LED board on opposite side of the each road now we have placed metal contactors at the starting of the road and an electronic circuit is fitted below the board. The circuit continuously produces some signal which is disconnected by the metal plates on the road. The LEDs are connected to the circuit through the metal plates when any vehicle passes on the metal plates the connection happens between plates and LED then the LED glows.
The same thing happens on another side. Here LED works in opposite direction, when any vehicle comes in right side road the Left side road LED will glow to indicate that there is vehicle on right side of road so you have to reduce your speed.LED (Light Emitting diode)Wires Eliminator Wooden board Vinyl PVC sheet Etc.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

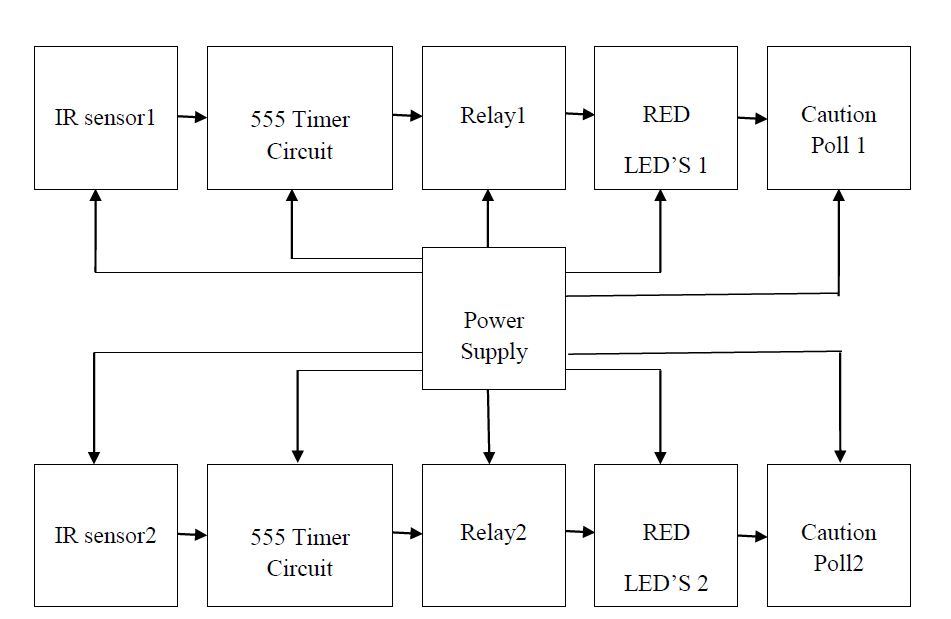

Block Diagram
Specifications
Learning Outcomes
- 555 IC diagram and Architecture
- Working of 555 timer and its modes
- Giving IR input to the 555 timer
- Circuit analysis and designing
- Timing delay calculation of the designed circuit
- Controlling of load through the designed circuit
- About Project Development Life Cycle:
- Planning and Requirement Gathering(Hardware components)
- Schematic preparation
- Hardware development
- Development of the Project and Output testing
- Practical exposure to:
- Circuit designing
- Solution providing for real time problems,
- Working with team/ individual,
- Work on Creative ideas.
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Project presentation skills
