A Zero Voltage Switching Based Soft Switching Boost DC-DC Converter for Vehicle to Grid Applications with Enhanced Energy Efficiency
Objective
The main objective of the project is to design and implement a Zero Voltage Switching (ZVS) based boost DC-DC converter using an auxiliary circuit for enhanced energy efficiency in vehicle-to-grid applications. This system aims to reduce switching losses by achieving soft switching conditions, which improves converter efficiency.
Abstract
This paper presents a Zero Voltage Switching (ZVS) based soft switching technique for boost DC-DC converter using an auxiliary circuit configuration, comprising of an auxiliary diode, an inductor, and a switch. This auxiliary inductor offers ZVS condition for the main switch, thereby annulling out the ripple component of inductor current and alleviating the switching losses. The auxiliary circuit has a supplementary benefit of storing energy in the auxiliary inductor which transmits the stored energy through the diode to the load. A soft switching ZVS boost DC-DC converter is used in vehicle to grid application for the efficient operation of the system. The simulation for boost converter using ZVS technique is carried out using MATLAB/SIMULINK software platform, and the findings were examined.
Keywords: Boost dc-dc converter, soft switching, Zero Voltage Switching (ZVS), Active Snubber Capacitor, High Switching Frequency.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

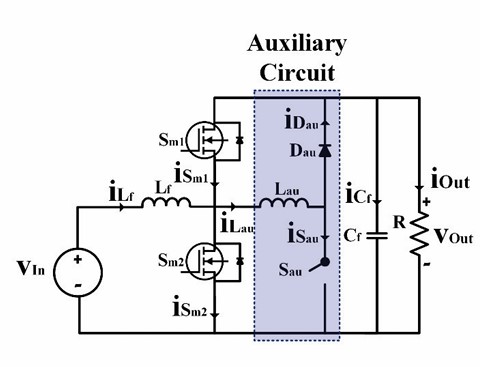

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software: Matlab / Simulink
Hardware Configuration:
RAM : 8 GB
Processor : I3 / I5 (Mostly prefer)Learning Outcomes
· Introduction to Matlab/Simulink
· How to start with MATLAB
· About Matlab language
· About tools & libraries
· Application of Matlab/Simulink
· Basics on Matlab/Simulink
· Introduction to DC Source
· Introduction to DC/DC Converters
· Introduction to ZVS
· Introduction to PI Controllers
· Introduction to PWM
· Project Development Skills:
o Problem analyzing skills
o Problem solving skills
o Creativity and imaginary skills
o Programming skills
o Deployment
o Testing skills
o Debugging skills
