A Voltage Support Control Strategy for Grid integrated Solar PV System During Abnormal Grid Conditions Utilizing Interweaved GI
Also Available Domains Solar Power Generation
Objective
Main objective of this project is control of active and reactive powers being fed into the grid network depending on requirements even during abnormal grid variations.
Abstract
In this project, a unique control strategy is presented for the control of solar Photovoltaic (PV) system interfaced to the grid utilizing an Interweaved Generalized Integrator (IGI). The main aspects for the control of grid integrated Voltage Source Converters (VSC) during abnormal grid variations are the control of voltage as well as power quality. During different irregular grid variations, the primary objective of control is to deliver the PV power to the grid. The system delivers power at a Unity Power Factor (UPF) during normal operation.
The profile of the PCC voltage is retained within prescribed limits by reactive power injection during variations in the grid voltage. In addition, during extreme voltage sags, LVRT activity is undertaken. In the absence of PV generation at night, the VSC and DC link capacitor act as a distribution static compensator, the usage of the system is increased. Unlike conventional control techniques, the system’s power quality is not impaired. The achievements of the controller are demonstrated through simulation.
Keywords: Interweaved Generalized Integrator (IGI), LVRT, Power Quality, Solar PV Generation, Voltage Control.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

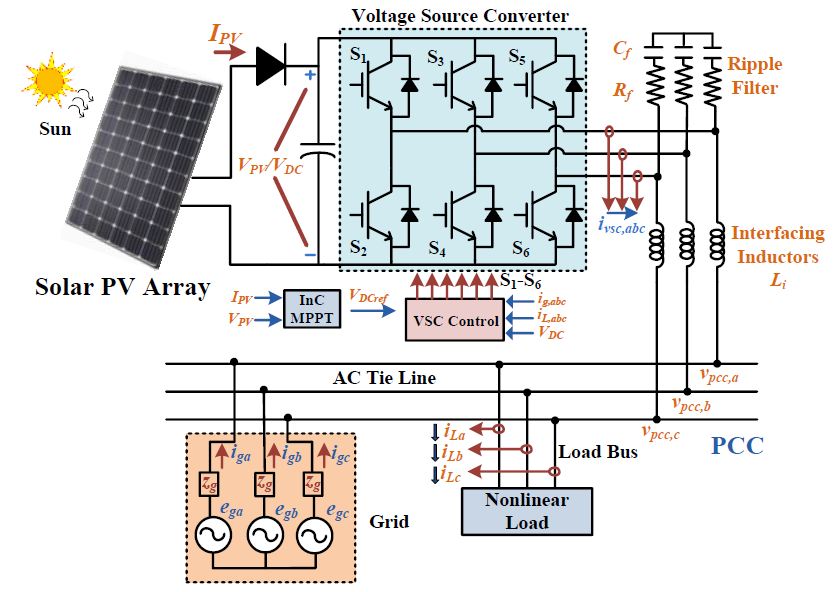

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB / 4 GB (Min)
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- How To Improve Power Quality?
- How to reduces the grid abnormal voltage variations?
- How to reduces LVRT ?
- Introduction to solar power generation
- Introduction to MPPT controllers
- Introduction to FACTS devices
- Design of distribution static compensator (DSTATCOM).
- Design of power converters
- Design of interweaved generalized integrator (IGI).
- Design of Voltage source converter
- Design of MPPT controller
- Design of Hysteresis Current Controller
- We can learn about the generation of gate pulses to the converter.
- Introduction to controllers
- Design of PI controller
- We can learn about the Clarke’s transformation
- We can learn about the park’s transformation
- Introduction to open loop and closed loop control system
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
