A Universal Controller Under Different Operating States for Parallel Inverters With Seamless Transfer Capability
Objective
Main objective of this project is to regulate the grid current accurately, output constant power, and to mitigate harmonics caused by grid voltage distortion.
Abstract
In this project, to operate parallel inverters in both Grid-Connected (GC) State and Standalone (SA) state and to ensure seamless transfer between them without reconfiguring the control structure, a universal controller is proposed.
The universal controller is mainly composed of frequency-locked-loop and three cascaded control loops: a grid current loop, capacitor voltage loop, and inductor current loop. A proportional-integral regulator is adopted in the grid current loop, and a limiter is inserted after the integrator.
In the GC state, the proposed controller accurately regulates the grid current of an individual inverter. When islanding occurs, the proposed controller can automatically convert from grid current control to vC–ig-based droop control; critical islanding detection is not needed. The effectiveness of the proposed system is verified by simulation in MATLAB/SIMULINK.
Keywords: parallel inverters, universal controller, grid current loop, capacitor voltage loop, and inductor current loop, vC–ig-based droop control.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

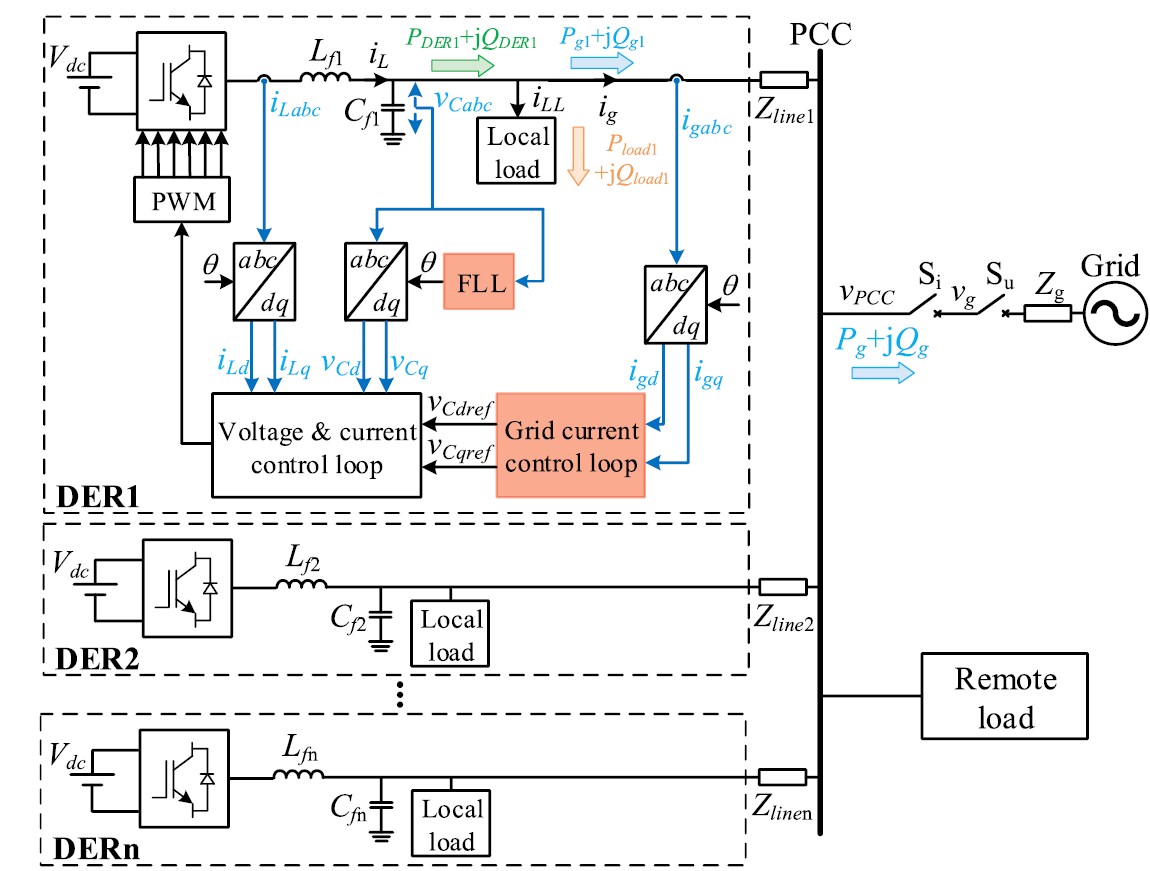

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB / 4 GB (Min)
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to microgrid.
- Introduction to power electronic devices.
- Introduction to power converters.
- Introduction to Pulse Width Modulation techniques.
- Introduction to controllers.
- Design of PI controller.
- Introduction to power quality.
- Introduction to filers.
- Design of filters.
- Introduction to different types of loads.
- Study of Current droop control.
- Design of current droop control.
- Design of PWM technique.
- Design of parallel inverter.
- Introduction to park’s transformation.
- Design of park’s transformation.
- Design of Clark’s transformation.
- Introduction to Clark’s transformation.
- Design of voltage and current control loop.
- Introduction to frequency locked loop.
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
