A Three-Phase Single-Stage ac-dc Converter Based on Swiss Rectifier and Three-Level LLC Topology
Objective
The main objective of this project is to propose a three phase single stage ac-dc converter based on Swiss rectifier and three level LLC topology for grid connected applications.
Abstract
This project presents a three-phase single-stage ac/dc converter based on Swiss rectifier and three-level LLC topology. It takes advantage of the high-efficiency Swiss rectifier to convert three-phase ac voltages into three variable dc voltages and interface a three-level LLC resonant circuit. With help of the LLC resonant tank, all the high-frequency three-level switches achieve soft switching. To both regulate the output voltage and achieve three-phase power factor correction, the frequency modulation in combination with the duty cycle control strategy is employed by splitting the resonant current into three parts and then forming three phase sinusoidal currents. The simulation results can be evaluated by using Matlab/Simulink Software.
Keywords: Full-bridge three-level LLC resonant circuit, soft switching, steady-state characteristic analysis, Swiss rectifier, three-phase single-stage ac/dc converter.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

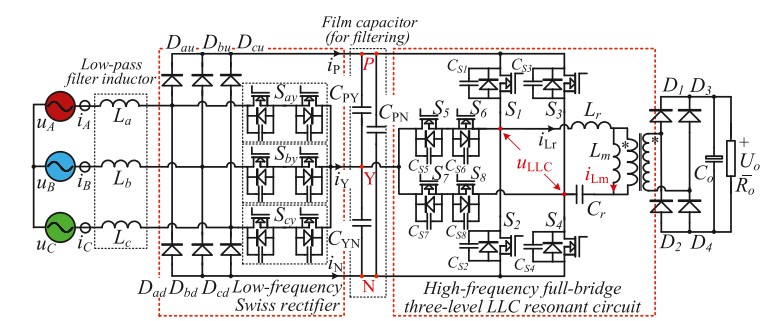

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software: MATLAB/Simulink
Hardware Configuration:
RAM : 8 GB
Processor : I3 / I5 (Mostly prefer)
Learning Outcomes
· Introduction to Matlab/Simulink
· What is EISPACK & LINPACK
· How to start with MATLAB
· About Matlab language
· About tools & libraries
· Application of Matlab/Simulink
· About Matlab desktop
· Features of Matlab/Simulink
· Basics on Matlab/Simulink
· We can learn about DC Microgrid Topology
· We can learn about Swiss Rectifier
· We can learn about Converters topology
· Project Development Skills:
o Problem analyzing skills
o Problem solving skills
o Creativity and imaginary skills
o Programming skills
o Deployment
o Testing skills
o Debugging skills
o Project presentation skills
o Thesis writing skills
Paper Publishing
