A Robust Simplified Dynamic Observer-Based Backstepping Control of Six-Phase Induction Motor for Marine Vessels Applications

Project Code :TEPGED33

Objective

The main objective of this enhance the steady state torque performance . it will reduces the torque ripples and current harmonics.

Abstract

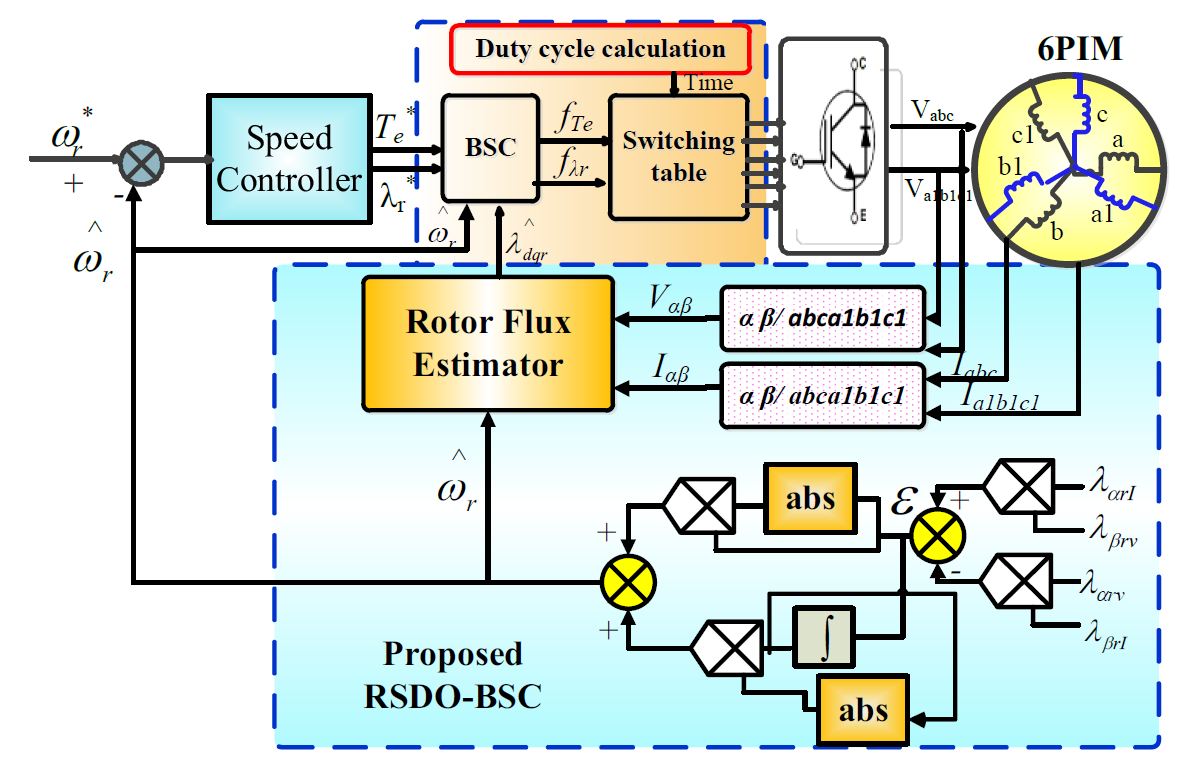

In this project, a robust simplified dynamic observer-based back stepping control (RSDO-BSC) and Direct Torque Control (DTC) synthesized with duty cycle control strategy of a Six-Phase Induction Motor (6PIM) for marine vessels applications is proposed. RSDO-BSC and DTC are employed to estimate the rotor speed while the DTC is utilized to accomplish enhanced steady-state torque performance via accurate inputs applied to the switching table of the six-phase inverter.

Furthermore, by using the duty cycle control approach, the loss components in the subspace are disregarded via the appropriate choice of virtual voltage vectors. Consequently, the 6PIM torque ripples and the current harmonics are significantly reduced. First, both the flux and the torque are decoupled using Lyapunov theory on a 6PIM 2-axis mathematical model represented in the stationary reference frame.

The 6PIM actual stator voltages are acquired from the DC-link voltage via the Space Vector Pulse-Width Modulated (SVPWM) inverter. Subsequently, when the 6PIM is loaded under the rated speed, a rapid search approach is used to maximize the 6PIM efficiency. The proposed system is modelled and simulated in MATLAB/SIMULINK.

Keywords: Direct Torque Control (DTC), RSDO-BSC, Six-Phase Induction Motor (6PIM), Lyapunov theory, duty cycle control.
