A Novel Virtual Resistor And Capacitor Droop Control For Hess In Medium Voltage Dc System
Also Available Domains DC - DC Converters
Abstract
In Medium Voltage DC system (MVDC), the Hybrid Energy Storage System (HESS) plays an important role during transmission. The HESS will provide backup power, controls large load variation and also improves the power quality. So, here a new Virtual Resistor and Capacitor Droop Control (VRCD) is presented for HESS including battery, super-capacitor (SC), and flywheel. It enables the generator and multiple types of energy storages (ESs) with different characteristics to respond to multiple-frequency unbalanced power instead of simple high-frequency and low-frequency power sharing by the conventional droop control method. Also, the secondary state of charge (S-o-C) recovery control is proposed to maintain high energy reserve of ESs for further power demand. Simulations are conducted to demonstrate the effectiveness of the control scheme proposed in a shipboard MVDC under particular loads fluctuation, such as the propulsion motor and the pulsed load
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

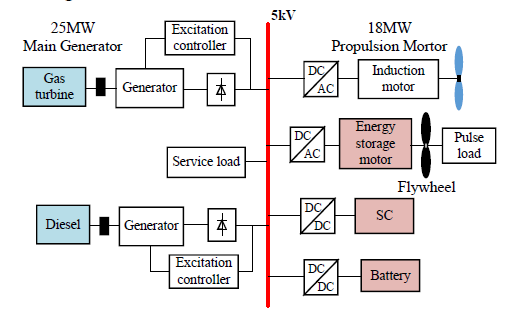

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB / 4 GB (Min)
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to controllers.
- Study of PWM techniques.
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
