A novel single phase bidirectional electric drive reconstructed onboard for electric vehicles
Objective
The objective of this paper is reconstructed converter is simple without specially designed motor
Abstract
In this project, an Electric-drive-reconstructed on board converter (EDROC) based on a switching network in the DC side is proposed. The system can utilize the existing hardware of electric vehicles and does not need extra equipment. When the EDROC connects to the power grid through the power outlet at the ofο¬ce or home there is not any additional equipment (ο¬lter or relay) on the AC side. Compare with traditional EDROC, the proposed novel EDROC has advantages in cost and volume. The EDROC can realize the unity power factor in the charging mode and discharges to drive the motor in the driving mode. The charging function and driving function of the proposed EDROC evaluated by using MATLAB/Simulink.
Keywords: Power conversion, electric vehicles, bidirectional converters, electric-drive-reconstructed system.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

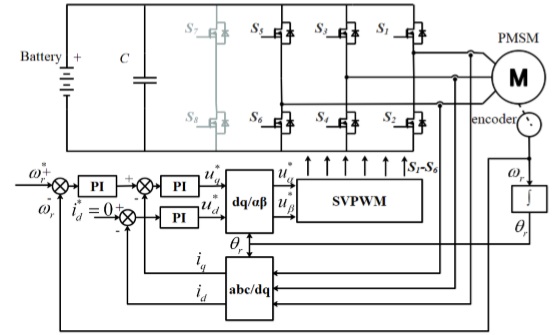

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to controllers.
- Study of PWM techniques.
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
