A Novel IUPQC for Multi-Feeder Systems Using Multilevel Converters With Grid Integration of Hybrid Renewable Energy System
Objective
Main objective of this project is to compensate the sag/swell and current/voltage harmonics.
Abstract
In this project, a novel topology of Interline Unified Power Quality Conditioner (IUPQC) for multi-bus/multi-feeder systems is presented, which is capable of compensating both voltage and current imperfections simultaneously for power quality improvement. In this system, four Voltage-Source Converters (VSC) with multilevel configuration are considered and space vector pulse width modulation is used in hexagonal coordinate system to reduce the complexity in generating switching pulses.
In the proposed IUPQC, all converters share a common dc-link capacitor. Hence, power can be transferred from healthy feeder to adjacent feeders for compensation of sag/swell and current/voltage harmonics. This IUPQC is implemented between two feeders with hybrid renewable energy system as one of the feeders. The performance of the proposed system for various power quality problems is analyzed and presented using MATLAB/SIMULINK.
Keywords: Grid integration, multi-feeder systems, multi-level converters, power quality improvement, renewable energy systems.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

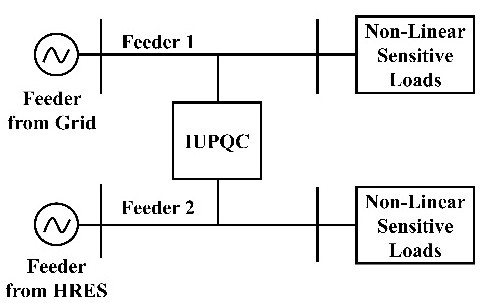

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB / 4 GB (Min)
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to Distribution Generation Systems
- Introduction to Renewable Energy Sources
- Introduction to Wind Power System
- Introduction to FACTS devices
- Introduction to Power Grids
- Introduction to Dynamic Voltage restorer (DVR)
- Introduction to Interline Unified Power Quality Conditioner (IUPQC)
- Introduction to Total Harmonic Distortion
- Introduction to Power Quality Issues
- Introduction to Voltage Sags and Swells
- Introduction to Hybrid Micro-Grids.
- Introduction to Point of Common Coupling (PCC)
- Introduction to Pulse Width Modulation (PWM),
- Introduction to Space Vector Pulse Width Modulation (SVPWM),
- Design of IUPQC
- Introduction to Types of Batteries.
- Introduction to Battery Energy Storage Systems.
- We can learn about the Grid Synchronization
- Introduction to open loop and closed loop control system
- Introduction to Voltage Stability
- Introduction to Filters
- Introduction to Voltage Source Converters (VSC)
- We can learn about different types of loads.
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
