A Multiplier-Free Discrete Cosine Transform Architecture Using Approximate Full Adder and Subtractor

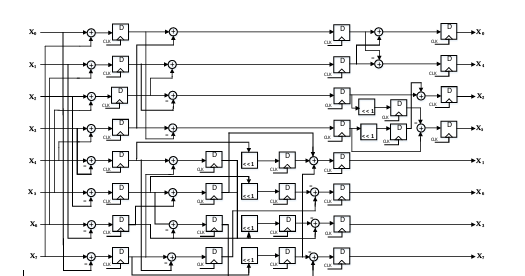

This study presents a high-performance hardware accelerator tailored for the implementation of the 2D 8×8 Discrete Cosine Transform (DCT) and its inverse (IDCT). The proposed design focuses on optimizing the dataflow of the 8-point 1D DCT/IDCT to effectively exploit the inherent properties of image and video processing workloads. To enhance computational efficiency, an 8-stage pipelined architecture is employed, enabling parallel execution and balanced distribution of arithmetic operations across multiple clock cycles. This approach significantly improves processing speed while reducing per-cycle computational complexity. A notable feature of the accelerator is the use of a multiplication-free approximation scheme for DCT coefficients. The design replaces conventional multipliers with adders and shifters, supported by fixed-point arithmetic and Canonical Signed Digit (CSD) representations. These techniques collectively minimize hardware complexity, power consumption, and latency without compromising transformation accuracy. The proposed architecture has been implemented and validated on an FPGA platform using an Artix-7 XC7VX330T device. The implementation achieves a maximum operating frequency of 288 MHz and delivers a throughput of 558 M pixels per second. It is capable of real-time processing of Full-HD video at up to 269 frames per second. Moreover, each 8×8 block of the 2D DCT/IDCT is processed within only 33 clock cycles, demonstrating the suitability of the proposed accelerator for high-speed image and video compression applications.

Key words:

DCT, IDCT, parallel transpose, hardware accelerator
