A Mixed Style Multiplier Architecture for Low Dynamic and Leakage Power Dissipation

Project Code :TVMAFE545

Objective

The main aim of doing this work is to neglect the logic blocks when their function is not required which tend to decrease latency and area which are due to transmission gates.

Abstract

Abstract: In order to reduce power dissipation or power consumption we have proposed an efficient design of combinational circuits by making a mixed style multiplier architecture. The main aim of doing this work is to neglect the logic blocks when their function is not required which tend to decrease latency and area which are due to transmission gates. This technique is called bypassing i.e., by not considering the multiplication operation when multiplier is ‘0’. By applying this technique we observe a decrease in dynamic power especially in the array multiplier circuit because of their regular arrangements, it is lacking area reduction and fast speed of the tree multipliers. Hence a combination of traditional tree based design and neglecting the unnecessary logic blocks will produce an efficient circuit which is having improvement in performance parameters.

Keywords: Combinational circuits, multiplier, transmission gates, bypassing, dynamic power, array multiplier.

NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

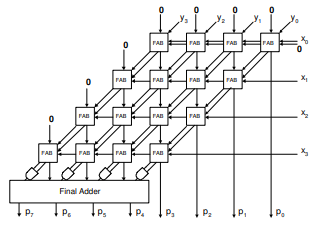

Block Diagram
