A Maximum Power Point Tracking Technique for a Wind Power System Based on the Trapezoidal Rule
Also Available Domains Wind Power Generation
Objective
The main objective of this project is a Maximum Power Point Tracking (MPPT) technique for a wind power system based on the Trapezoidal Rule is to enhance the efficiency and output of the wind turbine system
Abstract
This paper proposes a new trapezoidal-rule-based variation of the perturb and observe algorithm to track the point with maximum power for a wind energy conversion system. The algorithm works in three steps. In the first step, the trapezoidal-rule-based division of the power curve into trapezoids of equal width is carried out. In the second step, areas of the adjacent trapezoids are compared to identify the trapezoid with the largest area. In the third step, the conventional perturb and observe algorithm is employed in the trapezoid having the largest area to capture the point of maximum power. The algorithm is simulated in MATLAB/SIMULINK to check the efficacy in capturing the maximum power.
Keywords: : maximum power point tracking, trapezoidal rule ,wind turbine, wind energy conversion systemNOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

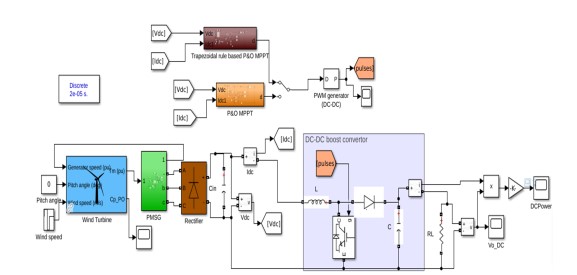

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software: Matlab / Simulink
Hardware Configuration:
RAM : 8 GB
Processor : I3 / I5 (Mostly prefer)
Learning Outcomes
· Introduction to Matlab/Simulink
· What is EISPACK & LINPACK
· How to start with MATLAB
· About Matlab language
· About tools & libraries
· Application of Matlab/Simulink
· About Matlab desktop
· Features of Matlab/Simulink
· Basics on Matlab/Simulink
· We can learn about wind turbine
· We can learn about MPP algorithms
· We can learn about P&O Trapezoidal Rule
· Project Development Skills:
o Problem analyzing skills
o Problem solving skills
o Creativity and imaginary skills
o Programming skills
o Deployment
o Testing skills
o Debugging skills
o Project presentation skills
o Thesis writing skills
