A Hybrid Diesel-Wind PV Based Energy Generation System with Brush Less Generators

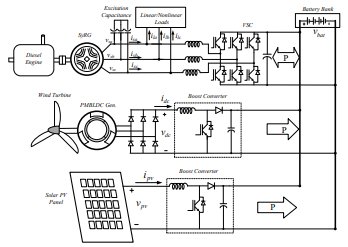

This paper presents an experimental implementation of a standalone microgrid topology based on a single voltage source converter (VSC) and brushless generators. The microgrid system is energised with different renewable energy sources namely wind and solar PV array. However, a diesel generator (DG) set and a battery energy storage system (BESS) are also used to maintain the reliability of the system. The proposed topology has the advantage of reduced switching devices and simple control. The implemented topology has DG set as an AC source. The wind generator and the solar PV array are DC sources which are connected to the DC link of the VSC. The BESS is also used at the DC link to facilitate the instantaneous power balance under dynamic conditions. Along with the system integration, the VSC also has the capability to mitigate the power quality problems such as harmonic currents, load balancing and voltage regulation. A wide variety of test results are presented to demonstrate all the features of the proposed system. The simulation results can be evaluated by using Matlab/Simulink 2018a Software.

KEYWORDS: Brushless Generator, Composite Observer, Power Quality, Standalone Microgrid, Voltage Regulation, Voltage Source Converter.
