A design of miniatured mode SIW cavity backend antenna
Objective
The main objective of the project is to overcome the challenges of addressing the changes in the antenna by using an SIW cavity antenna.
Abstract
A miniaturized half-mode substrate integrated waveguide (HMSIW) antenna is presented which resonates at a frequency of 6.78 GHz. The S-parameters and radiation patterns are investigated by full-wave simulation and the simulated results show the unidirectional radiation pattern. The proposed is single layered, compact in size, and can be easily integrated with planar PCB technology. It also takes the features of conventional cavity backed antennas including high gain and good radiation pattern.
Keywords- SIW, half mode, square cavity backed antenna, dominant mode.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

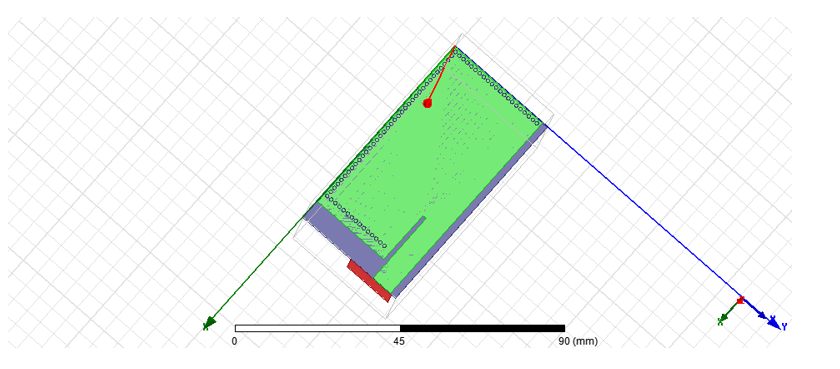

Block Diagram
Specifications
Software: HFSS Antenna designing.
Hardware:
- 64-bit Intel or AMD system, running Windows 10.
- 8 GB RAM
- A dedicated graphics card with latest drivers and at least 1GB video RAM, capable of supporting OpenGL 4.5 and DirectX 11, or higher. Use of integrated graphics (e.g., Intel HD/IRIS) is not recommended and is not support by the Analyze stage in Discovery. See below for special graphics requirements for ANSYS Discovery Live.
- 3 button Mouse.
Learning Outcomes
- Introduction to HFSS
- What is Antenna designing
- How to start with HFSS antenna designing.
- About Electromagnetic environmental setup
- Designing skills
- About libraries
- How to add feed, radiation patterns for Antenna.
- About HFSS desktop
- How to use different shapes in creation of Antenna
- Features of HFSS
- Basics on HFSS
- How to create EM fields in HFSS.
- How to generate directive gain, return loss graphs for different frequencies.
- How to extend our work to another real time applications
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
