2.4 GHz Microstrip Patch Antenna for S-Band Wireless Communications
Objective
To design and simulate a compact 2.4 GHz microstrip patch antenna with efficient impedance matching and good radiation performance, suitable for S-band wireless communication applications like Wi-Fi, Bluetooth, and ZigBee
Abstract
ABSTRACT
This paper presents the design and simulation of a 2.4 GHz microstrip patch antenna for S-band wireless communication applications. The proposed antenna is developed using a rectangular patch structure with an inset feed technique to achieve proper impedance matching. The antenna is designed on an FR-4 substrate, which provides a low-cost and compact solution suitable for modern communication systems. The dimensions of the patch, feed line, and substrate are carefully calculated to operate at the desired resonant frequency of 2.4 GHz.
Simulation results show that the antenna achieves excellent performance with a return loss of about –51.89 dB and a bandwidth of 74 MHz, ensuring efficient signal transmission. The voltage standing wave ratio (VSWR) is close to 1, indicating minimal reflection and good impedance matching. The antenna also provides satisfactory radiation characteristics with reasonable gain and directivity, making it suitable for practical applications.
The proposed antenna is ideal for wireless communication systems such as Wi-Fi, Bluetooth, and ZigBee. Its compact size, simple design, and good performance make it a reliable solution for S-band applications.
KeywordsMicrostrip patch antenna, 2.4 GHz, S-band, return loss, VSWR, FR-4 substrate, wireless communication.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

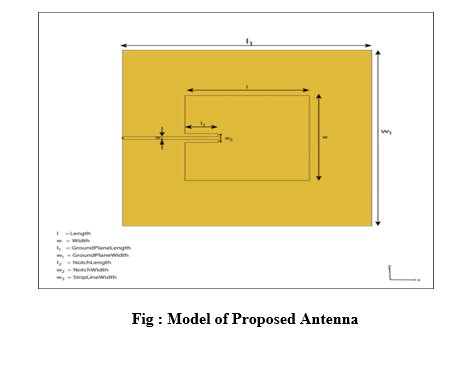

Block Diagram
Specifications
Software: HFSS Antenna designing.
Hardware:
- 64-bit Intel or AMD system, running Windows 10.
- 8 GB RAM
- A dedicated graphics card with latest drivers and at least 1GB video RAM, capable of supporting OpenGL 4.5 and DirectX 11, or higher. Use of integrated graphics (e.g., Intel HD/IRIS) is not recommended and is not support by the Analyze stage in Discovery. See below for special graphics requirements for ANSYS Discovery Live.
- 3 button Mouse.
Learning Outcomes
- Introduction to HFSS
- What is Antenna designing
- How to start with HFSS antenna designing.
- About Electromagnetic environmental setup
- Designing skills
- About libraries
- How to add feed, radiation patterns for Antenna.
- About HFSS desktop
- How to use different shapes in creation of Antenna
- Features of HFSS
- Basics on HFSS
- How to create EM fields in HFSS.
- How to generate directive gain, return loss graphs for different frequencies.
- How to extend our work to another real time applications
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
