Power Generation using Piezo Electric Material
Objective
The main objective of this project is to Generate electric power from Piezoelectric material which gives certain voltage as output
Abstract
The use of renewable resources like the solar energy and various other clean sources of energy has been on an increase in demand in the recent years due to their ease in availability and low and cost. This project demonstrates how to use the solar energy and the kinetic energy from footsteps of people walking over piezo based footboard. The Solar Panel is used to harness the solar power. It converts the solar power into voltage, which when more than the voltage in the battery is able to charge the battery. The power available through the solar panel is sensed by an Arduino family microcontroller which it displays on the LCD. Similarly, the power generated through footsteps over Piezo Footboard is shown on the LCD. In this way one can charge the battery through solar and footstep energies while simultaneously also monitoring of how much is getting generated with the use of Solar Piezo Hybrid Power Charging System.
Keywords: Solar power, Piezo sensor, Charging
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

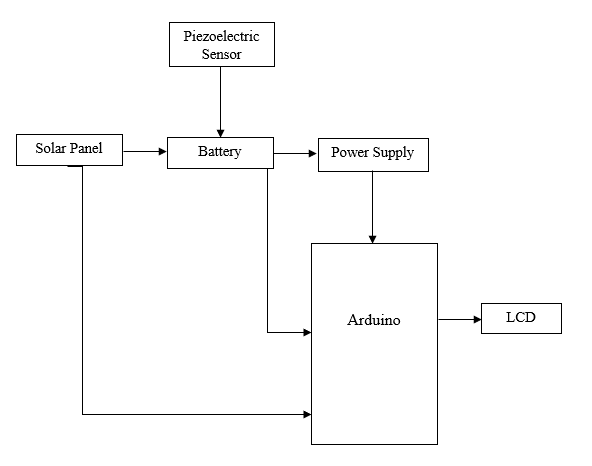

Block Diagram
Specifications
Hardware Requirements
- Arduino
- Piezo Sensor
- LCD
- 12V Battery
- Power Supply
- Solar Panel
Software Requirements:
- Arduino IDE
- Embedded C
Learning Outcomes
- Arduino pin diagram and architecture
- How to install Arduino IDE software
- Setting up and installation procedure for Arduino
- Introduction to Arduino IDE
- Basic coding in Arduino IDE
- Working of Solar Panel
- Working of Piezo Sensor
- Working of voltage divider circuit
- Working of Relay
- Interface Relay with Arduino?
- Working of LCD
- Interface LCD with Arduino?
- Interfacing of voltage divider circuit to Arduino?
- About Project Development Life Cycle:
- Planning and Requirement Gathering (software’s, Tools, Hardware components, etc.,)
- Schematic preparation
- Code development and debugging
- Hardware development and debugging
- Development of the Project and Output testing
- Practical exposure to:
- Hardware and software tools.
- Solution providing for real time problems.
- Working with team/ individual.
- Work on Creative ideas.
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
