Portable Roadside Sensors for Vehicle Counting Classification & Speed Measurement
Objective
The main objective of this project is to measure speed of vehicle by using Two Ultrasonic sensors and sending the over speed vehicle image to cloud
Abstract
This project focuses on the development of a portable roadside sensor system for vehicle counting and speed measurement. The sensor system consists of wireless devices that do not require to be embedded in the roadway-the devices are placed next to the roadway and measure of vehicles. If any vehicle is crossing the speed limit, the camera will capture the image and will send it to authorized people.
The ultrasonic sensors were used to measure the speed of a vehicle by calculating the time taken for a vehicle to reach from first to second ultrasonic sensor.
Keywords: Speed Measurement, Ultrasonic sensors, Raspberry Pi.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

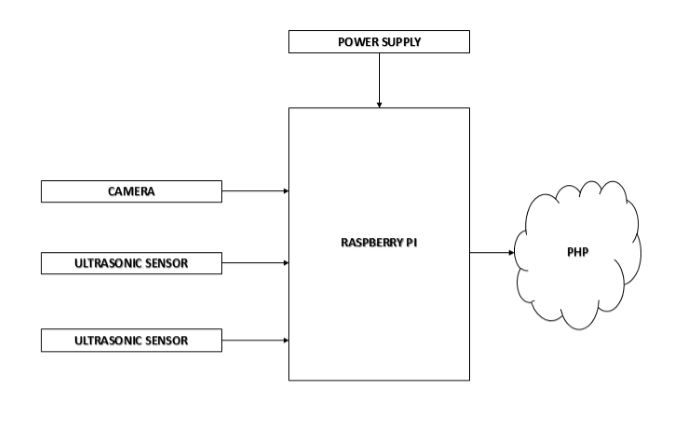

Block Diagram
Specifications
Hardware Requirements:
- Raspberry Pi
- Micro SD Card
- 5V 2A Adapter
- Ultrasonic sensors
- Webcam
Software Requirements:
- NOOBS OS
- VNC Viewer
- Advanced IP Scanner
- Python3 IDLE
- Third Party Server
Learning Outcomes
- Raspberry Pi pin diagram and architecture
- How to install and setup NOOBS OS into Raspberry Pi
- Introduction to Python IDLE
- Basic coding in python IDLE
- Working of ultrasonic sensor
- Interface ultrasonic sensor with Raspberry Pi?
- Interfacing camera with Raspberry Pi
- Introduction to IOT
- How to send data to a third party sever using Raspberry Pi?
- About Project Development Life Cycle:
- Planning and Requirement Gathering( software’s, Tools, Hardware components, etc.,)
- Schematic preparation
- Code development and debugging
- Hardware development and debugging
- Development of the Project and Output testing
- Practical exposure to:
- Hardware and software tools.
- Solution providing for real time problems.
- Working with team/ individual.
- Work on Creative ideas.
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
