Adaptive Hybrid Generalized Integrator Based SMO for Solar PV Array fed Encoderless PMSM Driven Water Pump

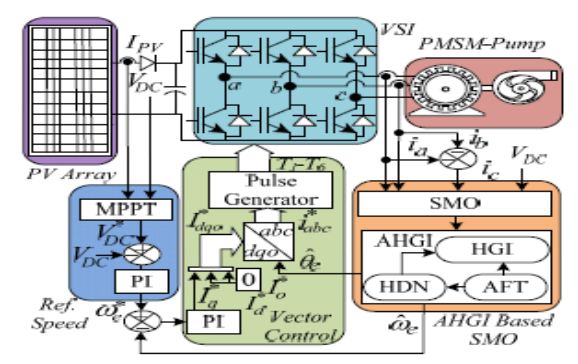

The encoder influences reliability and cost of permanent magnet synchronous motor (PMSM) operated solar water pump (WP). It is even sensitive to electromagnetic noise and temperature, which thereby reduces its accuracy. To overcome these problems, an encoderless PMSM control by using adaptive hybrid generalized integrator (AHGI) based sliding mode observer (SMO) for the solar WP system is presented in this paper. The widely used low pass filter based SMO produces phase-shift, attenuation and dominant lower order harmonics (DLOH). This decreases the position estimation accuracy. Besides, the need for tracking dynamic system frequency further exacerbates its performance.

The developed AHGI structure eliminates these drawbacks and provides an accurate estimate of position over a wide speed range. A harmonic decoupling network, a hybrid generalized integrator and an adaptive frequency tracker constitute AHGI, which respectively performs dominant harmonic signal generation, DLOH elimination and frequency tracking.

The improvement in behavior of AHGI over the existing methods is analyzed by transfer functions, Bode plots and back electromotive force helices. Meanwhile an incremental conductance algorithm for PV array maximum power control is used. The developed structure is experimentally validated on a laboratory prototype and a comparison with the existing methods is also made.

Keywords: Solar water pump, solar photovoltaic (PV) array, encoderless control, PMSM, adaptive hybrid generalized integrator (AHGI), adaptive frequency tracker (AFT)
